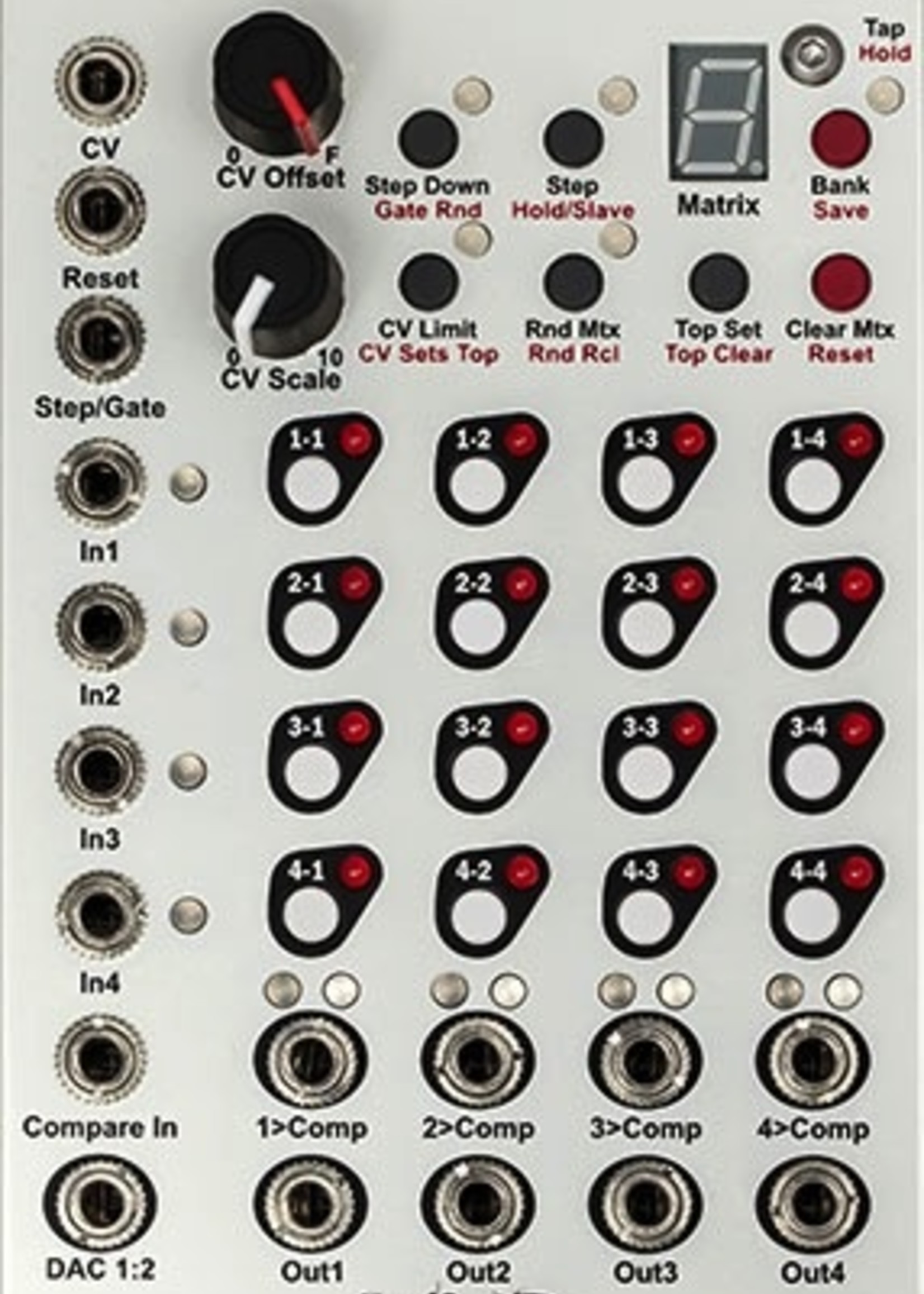

4x4 Triggered/CV-Addressed Routing Matrix

Four inputs can be routed with individual buttons to four outputs. Those routing settings are stored in an array of matrices that can be sequenced or controlled with CV. Preset routing, feedback loops, chop sequences, trigger blasts (with expander), four-bit-wavetable-synthesis, and dramatic controllable mayhem are all possible. The digitally controlled analog signal paths allow for a variety of routing control options. The open architecture allows for many uses beyond simple signal routing and unity mixing.

Inputs
• CV Offset
• Reset B
• Step/Gate A
• In (1-4)
• Compare In
• CV of Filter Resonance (1, 2)

Outputs
• Out (1-4)
• Comp (1-4)
• DAC 1:2

Controls
• CV Offset
• CV Scale
• 4x4 Button Matrix
• Step Down
• Step
• CV Limit
• Random Matrix
• Top Set
• Clear Matrix

In the Box
• The module itself
• Eurorack Cable
