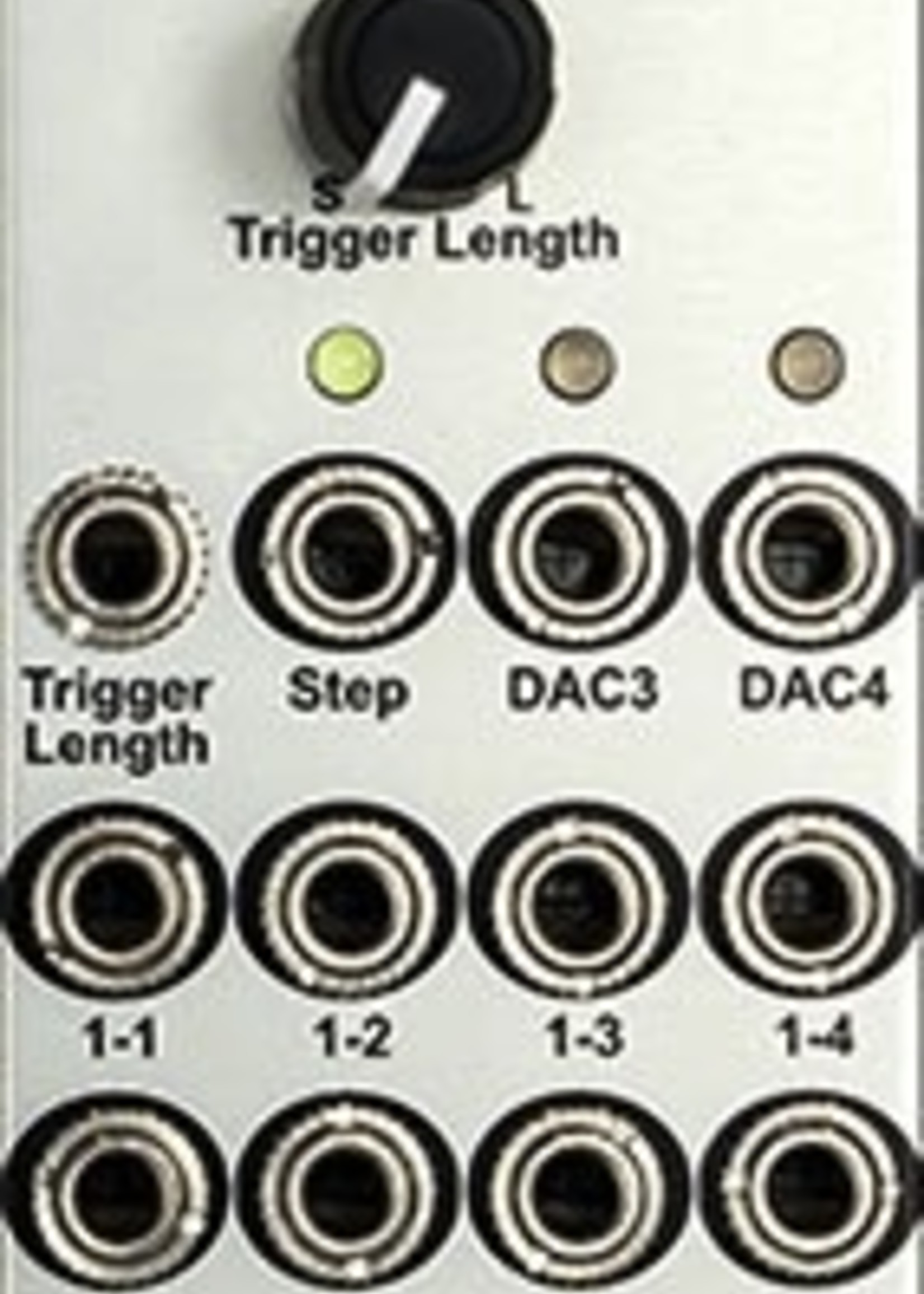

Functionality Expander for the Sequential Switch Matrix (SSM)

Gate/Trig: Gate (Green LED lit) provides 10V outputs for each routing button. It mirrors the routing shown by the SSM LEDs. Trig mode (Red LED lit) will output a trigger when a step (CV, Step/Gate or Reset) is taken. Pushing a routing button will not change the output thus providing synchronized triggers.

Trigger Length: CV and knob provide adjustable trigger length.

Retrig on Step: When on, gates and triggers will retrigger quickly when a step is taken.

Invert Behavior: When on, routings that are OFF will produce ON triggers or Gates.

DAC3/4: Two 4 bit DAC outputs that output a weighted 4 bit voltage between 0 and 5 volts. From routing columns 3 and 4.

Step: Outputs a trigger for each step, reset or CV change that is made to the SSM.

Included
• The module itself
• Eurorack Power Cable
