4ms SCM (Shuffling Clock Multiplier), Kit

Same as SCM (Shuffling Clock Multiplier) but in kit form, complete with printed visual parts list reference guide and very well written instruction booklet. Requires basic through-hole soldering skills, tools and related supplies.

Clocking Module/Frequency Multiplier

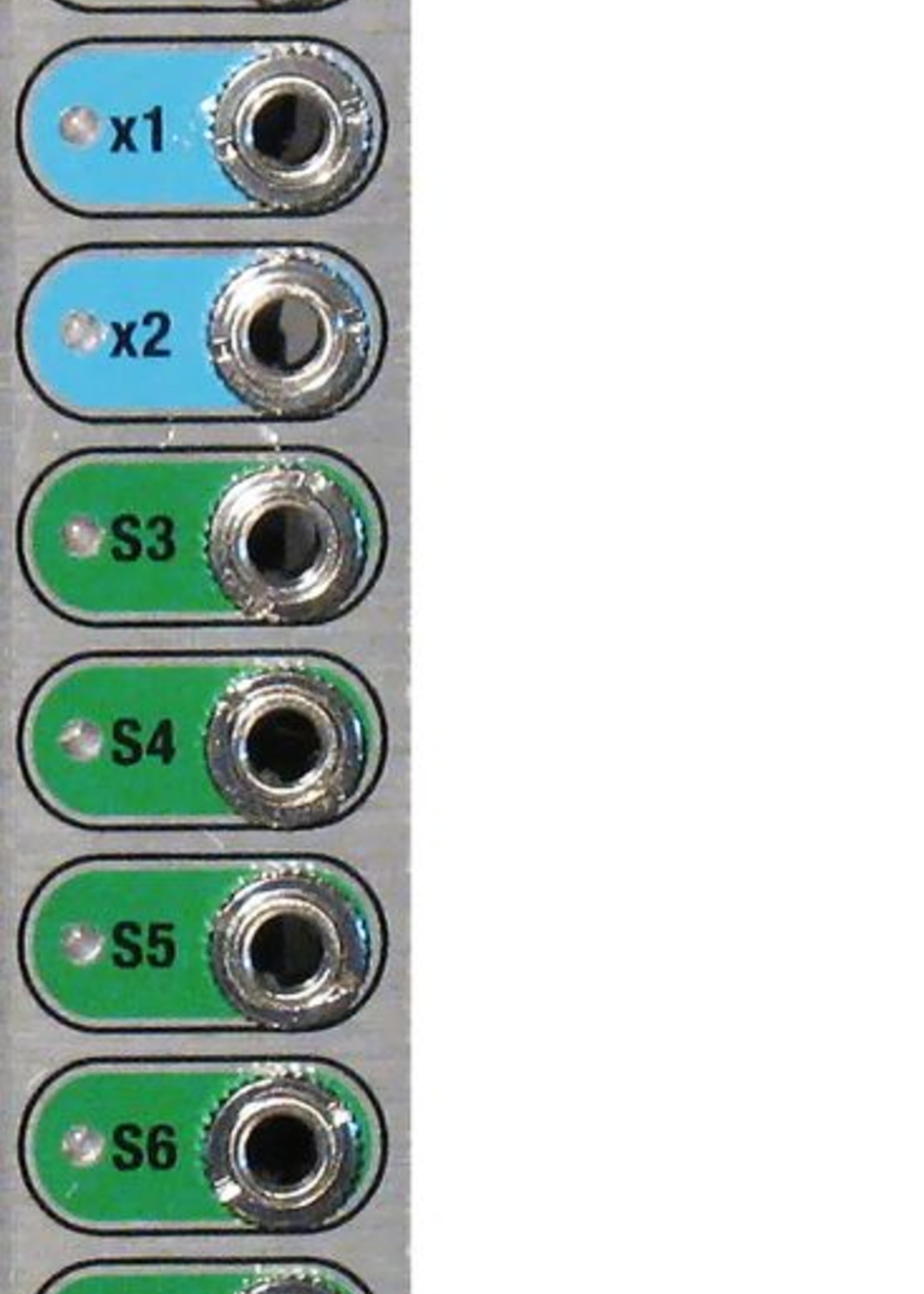

The SCM measures the time between the previous two pulses, and uses that value to calculate the frequency of the clock signals on the output jacks. Applying a steady clock will produce an output clock of equal frequency on the x1 jack, and a clock of double the frequency on the x2 jack... and a clock of eight times the frequency on the x8 jack. The other five jacks produce a clocks that are also multiples of the input clock, but these jacks will "rag" the beat (Slip and Shuffle), as well as drop some beats out (Skip): S3, S4, S5, S6, S8.

Features
• Multiply-by-1 to Multiply-by-32, on 8 output jacks
• Five Slipped/Shuffled/Skipped clock outputs (S3, S4, S5, S6, S8). Each is based on a multiple of the input clock frequency (x3, x4, x5, x6, and x8, respectively)
• Three steady clock outputs (x1, x2, and x8), which are not effected by • Slip/Shuffle/Skip effects
• CV Rotate jack to shift multiply-by amount on all jacks
• CV Slip causes particular beats to land ahead in time
• UART header-Connects to optional MIDI breakout panel-Arduino-compatible
• ISP header: Connects to in-circuit programmer such as AVR ISP MKII for reprogramming code
• Maximum input frequency 3kHz

Inputs
• Clock In
• Rotate
• Slip

Outputs
• 8 Multiplications of the incoming clock signal

In the Box
• Everything needed to build an SCM
• Eurorack Power Cable, 16-16-pin
