Compact Dual LFO

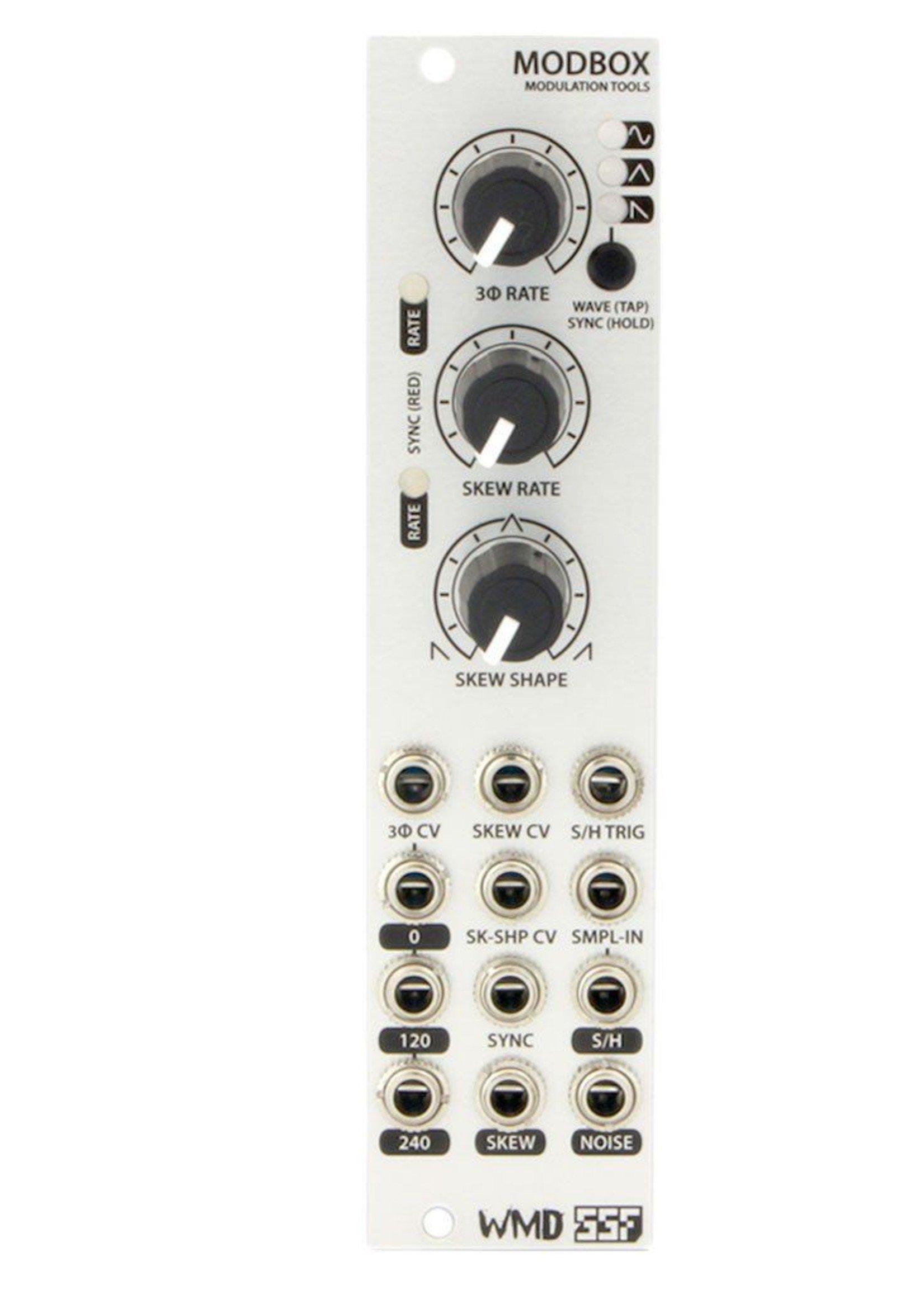

The Modbox is a tempo syncable modulation source with a three-phase LFO, CV Skewable LFO, Sample and Hold, and White Noise generator.

LFO 1 is a three-phase LFO with independent outputs for each phase which are set at 0, 120, and 240 degrees. Shape can be switched between Sine, Triangle, and Saw with a push of a button.
LFO 2 is a Skewable LFO with three shapes. The LFO shape can be smoothly changed from a Ramp through Triangle to Saw wave shapes. The skew shape can be changed with the Skew knob or with CV.

Both LFOs can be sync'd to an external clock source by holding the wave shape button for different lengths of time. As they are independent of each other, one can be sync'd while the other runs free.
Tempo sync calculates the time between incoming clocks and reacts instantly to each new clock pulse. Each rate knob becomes a multiplier/divider when sync is engaged.

Features
• Two independent, clock syncable LFOs
• Sample and hold circuit
• White noise generator
• Three phase LFO with 3 shapes and independent outputs for 0, 120, and 240 degrees out of phase.
• Skewable LFO with three wave shapes controllable with knob or CV
• Fast and easy syncing with external clocks

In the Box
• The module itself
• Eurorack Power Cable
