This item is used, has been fully tested and is guaranteed to be working. Mixer/Crossfader

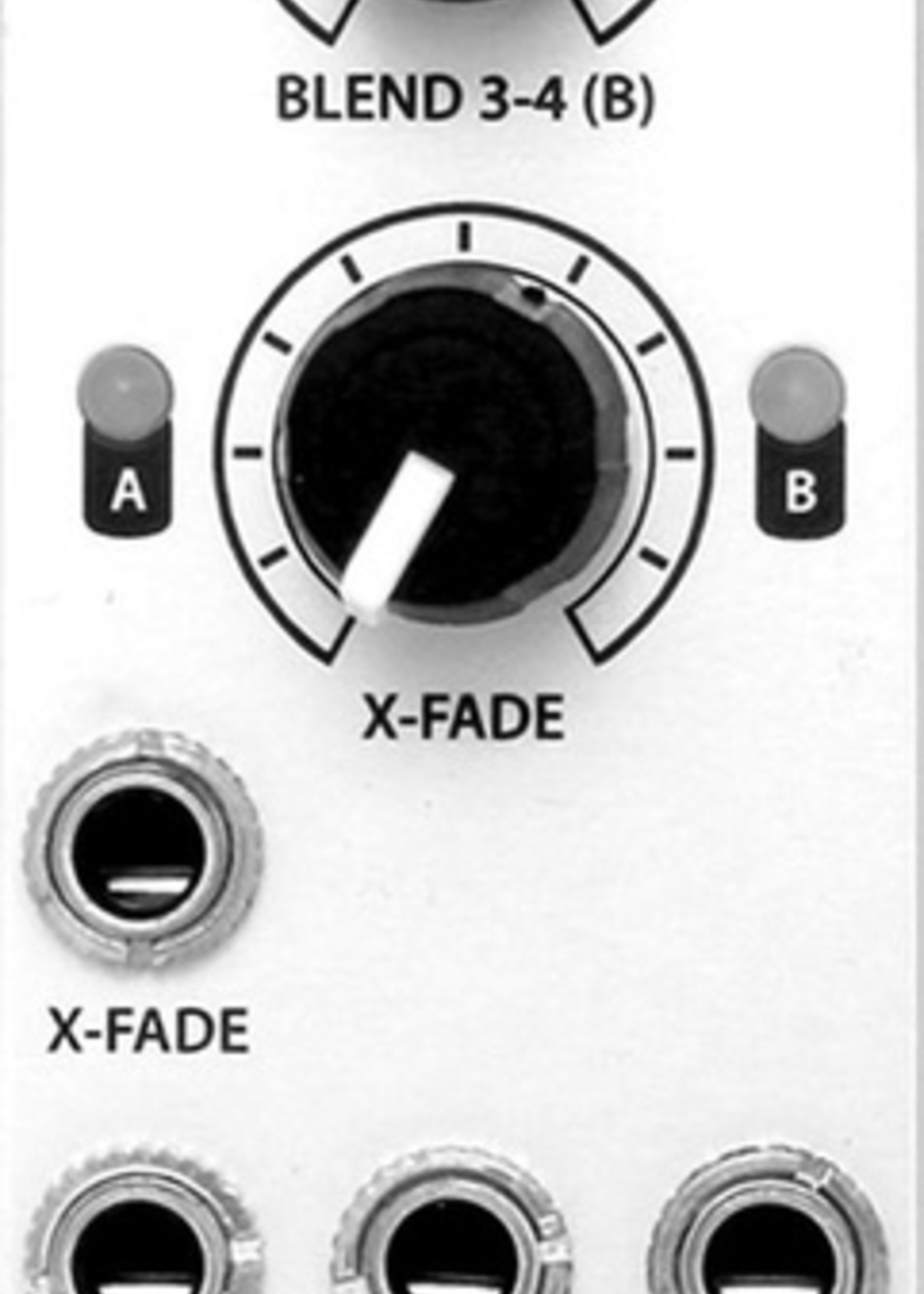

BLENDER is a four channel mixer and voltage controlled cross-fader. BLENDER simplifies mixing audio and control voltages (CV) by incorporating a single control to blend two signals at a time - also known as a cross-fader. Two manual cross-faders and a single voltage controlled master cross-fader are provided. Use BLENDER as a main mixer or as a dynamic control for creating complex control voltages and waveforms from your signal generators.
Features
• Two manual cross-faders with dedicated outputs
• One voltage controlled cross-fader for master mix or external inputs
Inputs
• X-Fade CV
• Audio 1, 2, 3, 4
• Fade A, B
Outputs
• Out 1-2
• Out 3-4
• Out A/B
Controls
• Blend 1-2
• Blend 3-4
• X-Fade
In the Box
• The module itself
• Eurorack Power Cable
+12v | 20mA |
---|---|
-12v | 20mA |
+5v | 0mA |
Width | 6HP |
Depth | 26mm |
