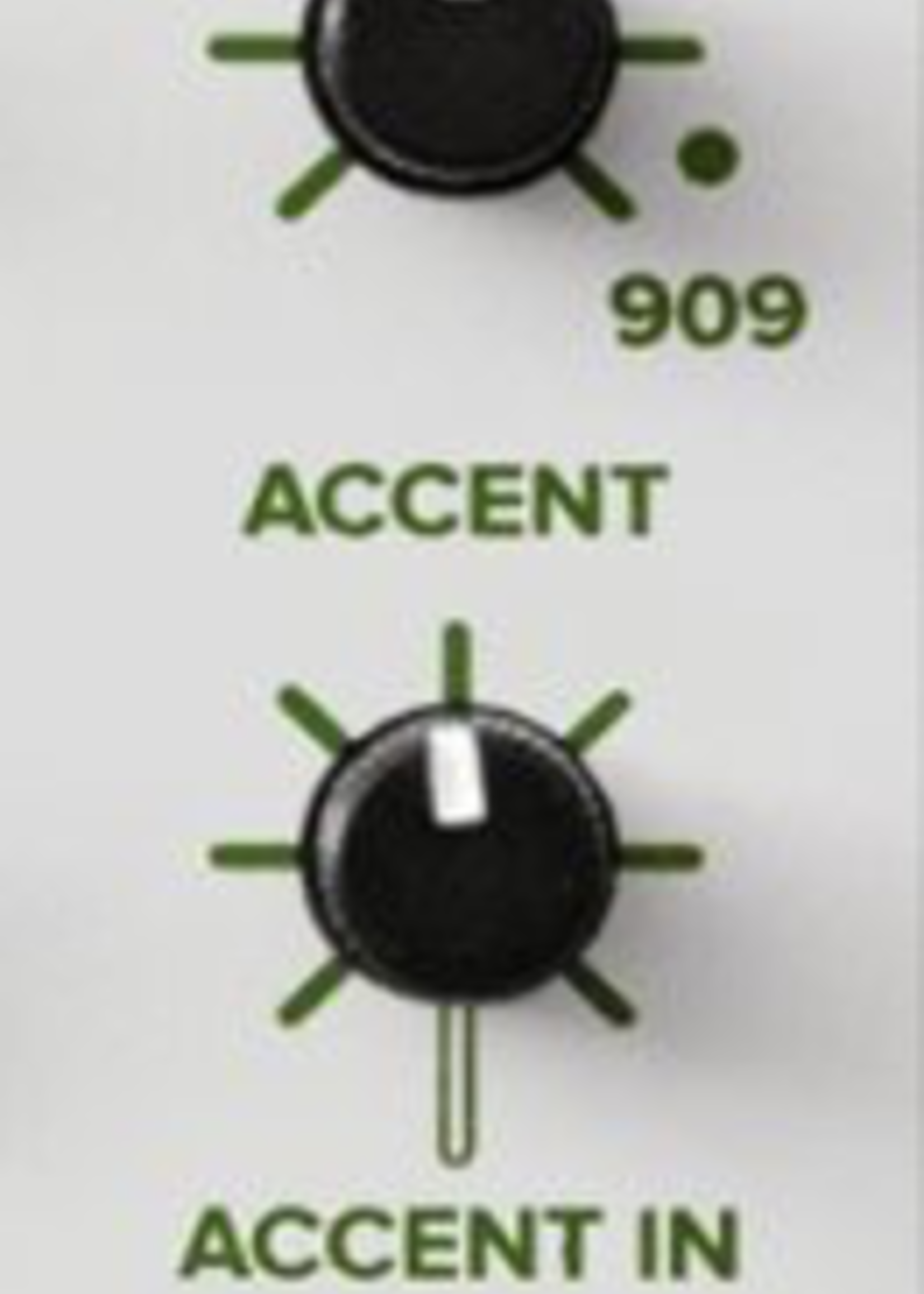

The RS909 is Roland's TR-909 analog Rimshot sound generator adapted for modular synthesizer use. The front panel contains all of the controls found on the original TR-909 drum machine, allowing you full control over the sound's volume levels to mix with other drums, and accent levels. In addition to those original controls we have also added control over the two internal oscillators, further enhancing this circuit.

MixBus jumper
Setting the jumper on the two pins will connect the output of this module to the MixBus of the MIXZ mixer module. If MixBus is not used please keep the jumper only on one pin, either pin is fine. For more information on MixBus please see MIXZ user guide.

Features
• Dual Oscillator Attenuators
• Accent Attenuator
• Accent In
• Gate In

In the Box
• The module itself
• Eurorack Power Cable
