Voltage-Controlled Lowpass Filter

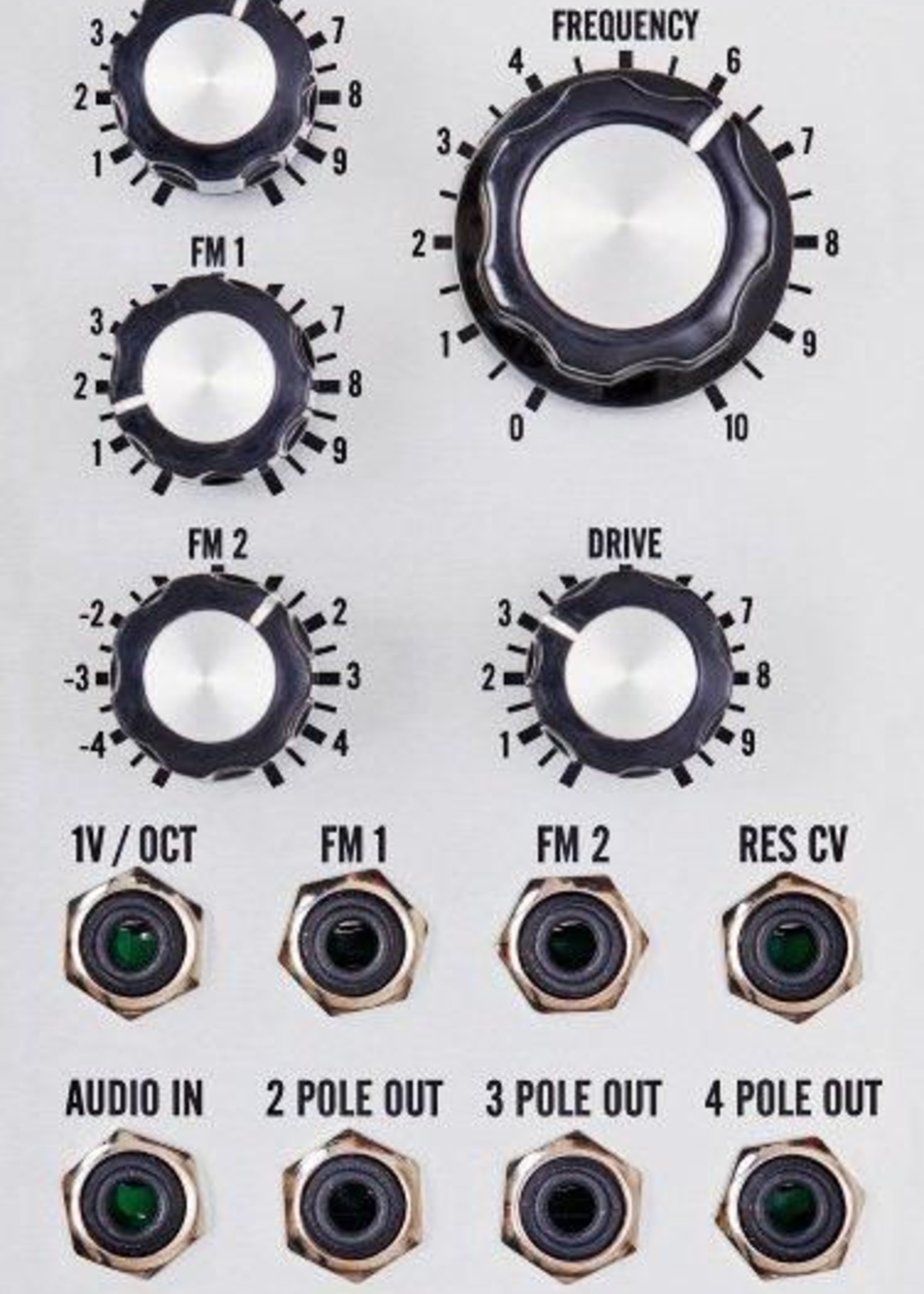

The Synthesis Technology E440 is a lowpass voltage-controlled filter with 3 simultaneous outputs. The input is any audio source (can be from line level to synth level) and the output is via the different slopes of the filter: 2pole (-12db/oct), 3pole (-18db/oct) and 4pole (-24db/oct). There are 3 CV inputs to control the cutoff frequency plus a separate CV input for the resonance. The E440 will self-oscillate at high resonance and can be used for a sine VCO (each output is phase shifted 45 degrees from the prior one) with 1v/Oct tracking (trimmable) over a 4-octave range. This response is also temperature-compensated. An external audio mixer module can be used to blend the 3 outputs into “in-between” slopes and by inverting them relative to another, different frequency responses.

Controls
• Frequency
• Resonance
• FM1
• FM2
• Drive

Inputs
• Audio
• 1V/Oct
• FM1
• FM2
• Res CV

Outputs
• 2-Pole
• 3-Pole
• 4-Pole

In the Box
• The module itself
• Eurorack Power Cable
• Manual
