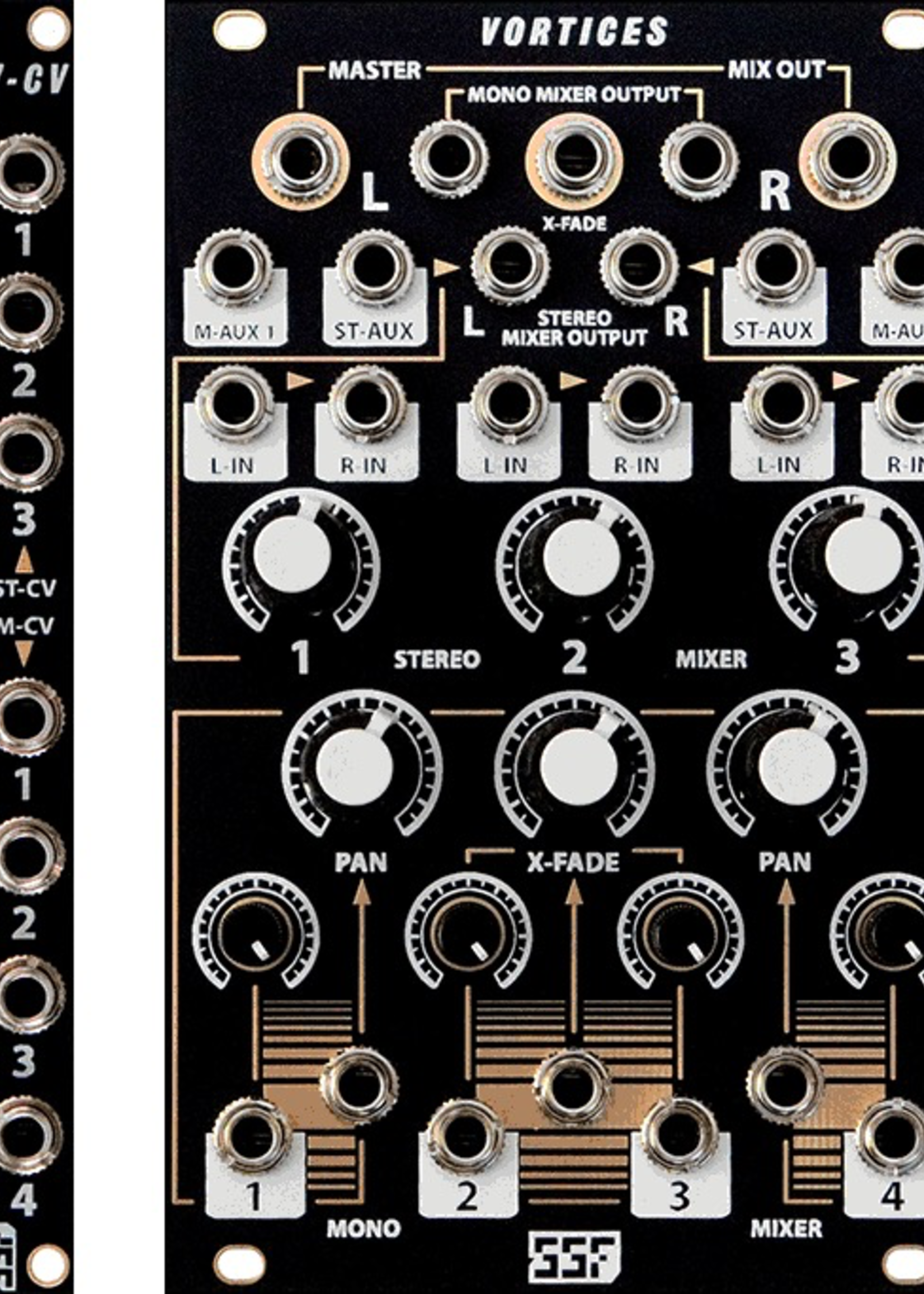

Character Mixer

16hp Character mixer modeled after vintage analog consoles and magnetic tape machines.

6 channel Mono Mixer including 4 attenuated inputs with tape saturation and level control, hard limiting and high frequency tone shaping.
• VC Panning on Channels 1 & 4
• VC Cross-Fading on Channel 2 & 3
• 2 Auxiliary Mono inputs
• Stereo Output
• Direct Cross-Fader Output

8 channel Stereo Mixer (4 stereo pairs) including 3 attenuated inputs with lighter coloration, hard limiting and a brighter frequency response.
• L>R Normalized to accommodate mono signals
• 1 Auxiliary Stereo input
• Stereo Output

Features
• Master mix output
• Stereo Jack Master Mix Output on the back of the PCB
• V-CV Expander included. Adds level/saturation control for all attenuated mixer channels.

Warning: *Vortices SWITCH must be set to EXP when using the V-CV Expander! Potential damage may occur

In the Box
• The module itself & the expander
• Eurorack Power Cable
