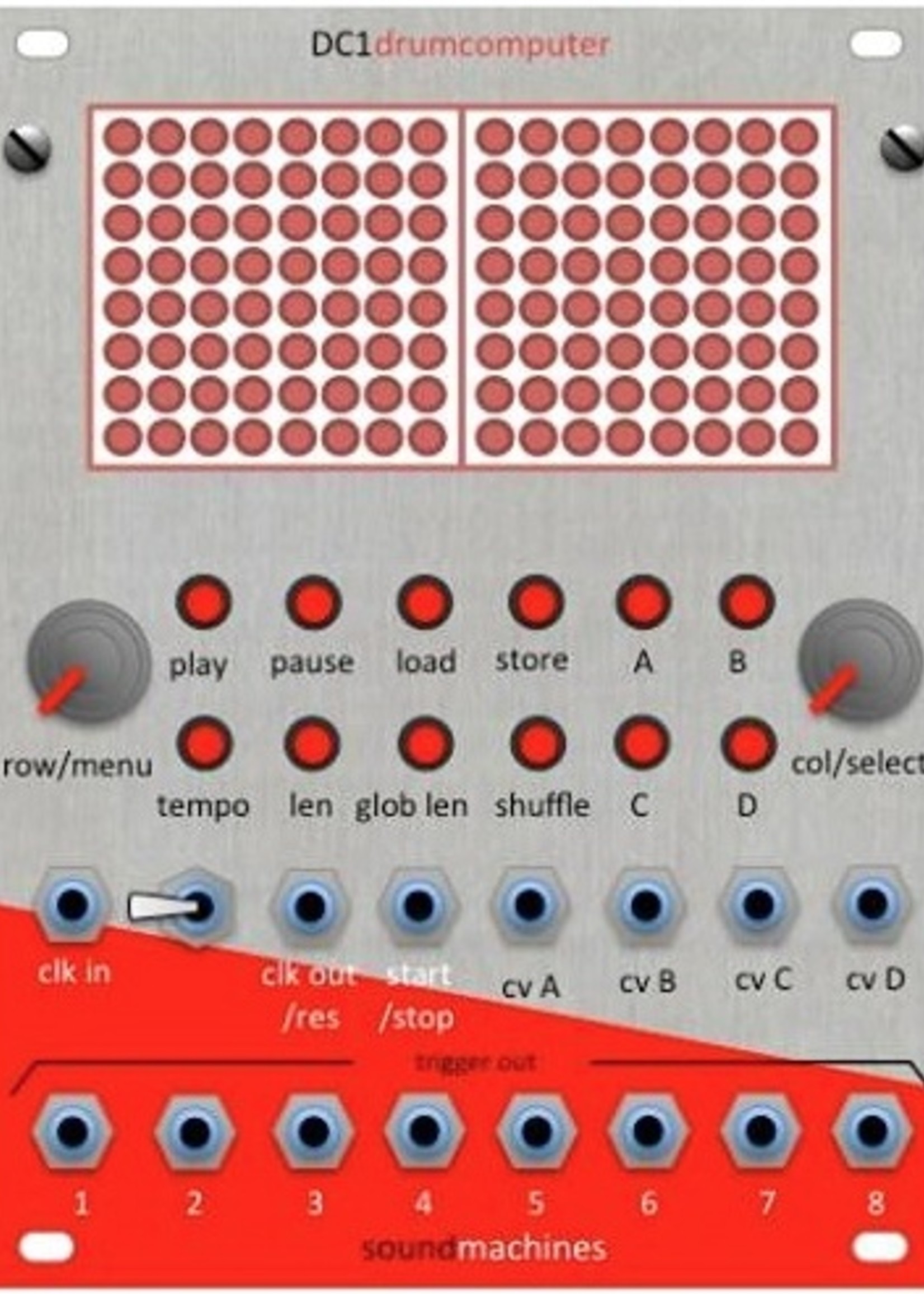

Soundmachines DC1drumcomputer is a powerful drum sequencer that includes traditional functions, storage and recall functions and an innovative CV control of many (most!) parameters of the sequences via four totally configurable inputs. The LED matrix display shows at first glance the pattern and the active steps and the user can easily insert hits via two encoders (in an X-Y fashion). The display is also used for the configuration of the module by clearly identifying functions and values in a textual way.

Inputs
• CV A, B, C, D
• Clock In
• Start/Stop In

Outputs
• Triggers: 1-8
• Clock Out

Controls
• Row/Menu (push-button encoder)
• Column/Select (push-button encoder)
• Play, Stop, Load, Storem Tempo, Length, Global Length, Shuffle, A, B, C, D
• Internal/External Clock (switch)

Included
• The module itself
• Eurorack Power Cable
