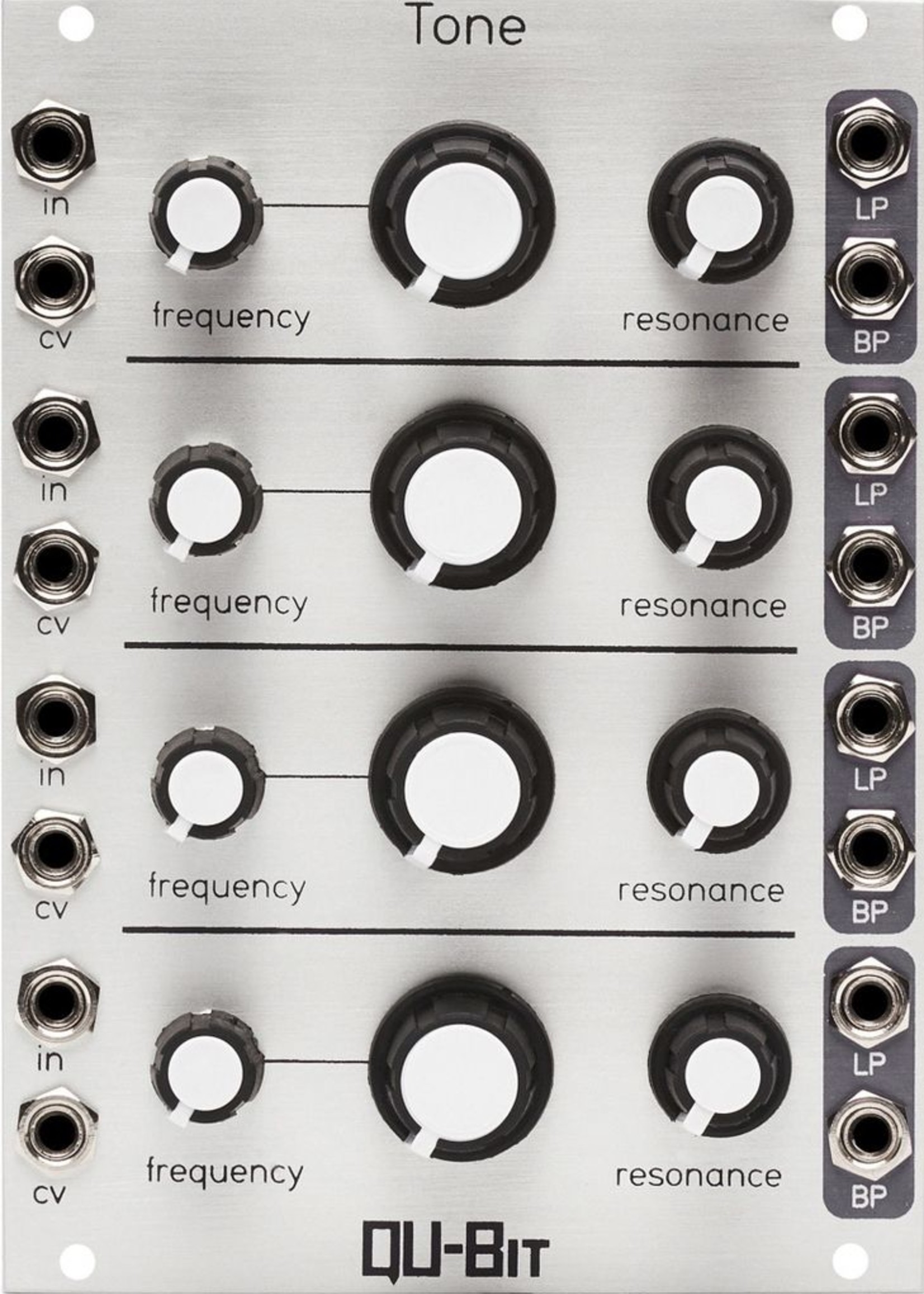

Tone is a quad, voltage controlled filter with low pass and band pass outputs. Its four channel architecture enables the intuitive patching of shimmering, polyphonic textures.
The 24dB slope provides a warm, buttery character. Self oscillation allows each channel to double as a sine wave oscillator with v/oct tracking across four octaves. Cascade OTA topology. A perfect match for the Chord.
Features
• Quad voltage controlled filter
• 24 dB slope
• Simultaneous low pass and band pass outputs
• Self oscillation with v/oct tracking across four octaves
In the Box
• The module itself
• Eurorack power cable
+12v | 91mA |
---|---|
-12v | 87mA |
+5v | 0mA |
Width | 18HP |
Depth | 34mm |
