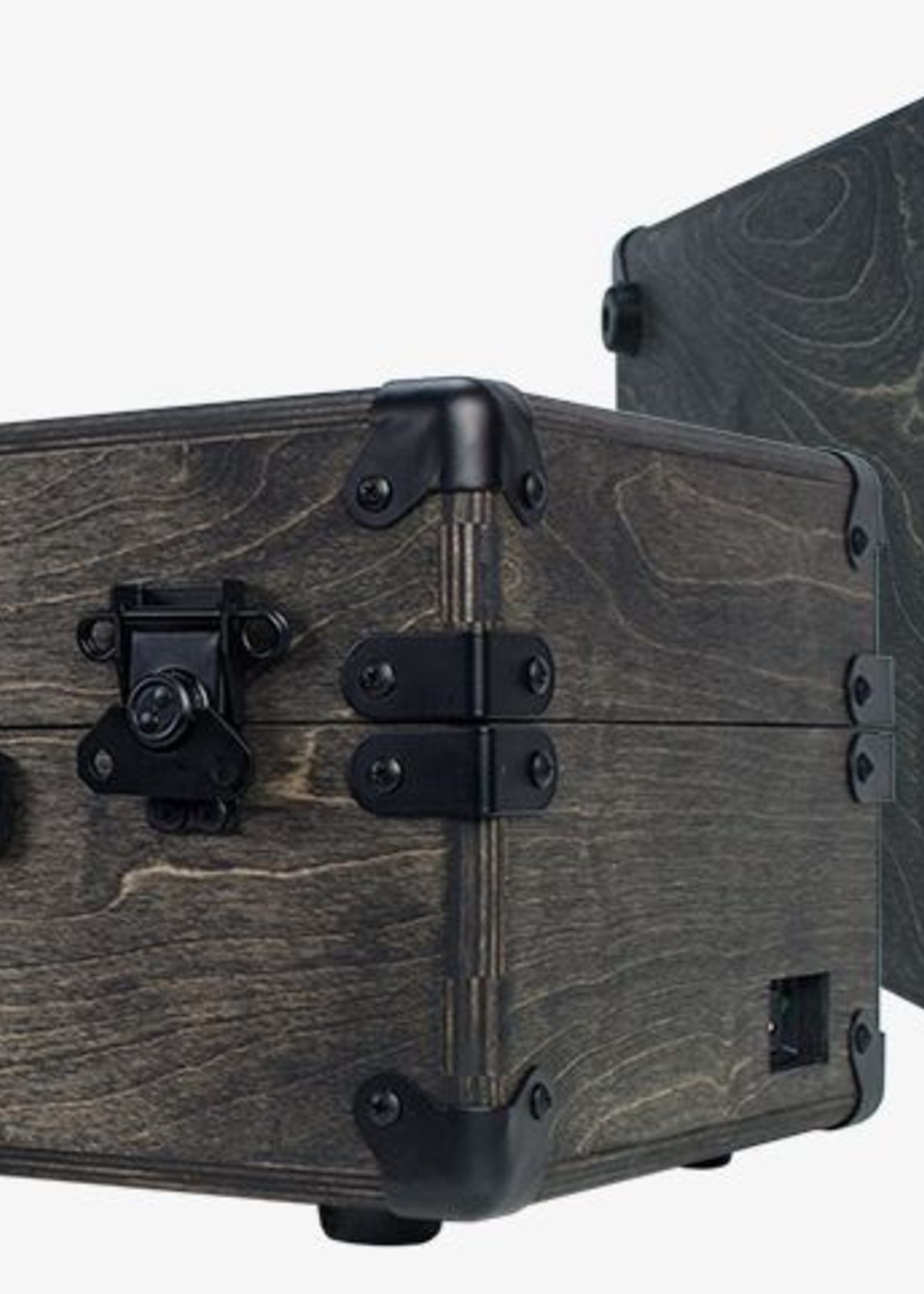

Pittsburgh Modular Structure EP-208

Article number: CV2033
$699.00
Total

Serious 208HP Powered Portable Case

The rating of this product is 0 out of 5

(0)
Out of stock
Add to wish list Add to wish list
STRUCTURE EP-208

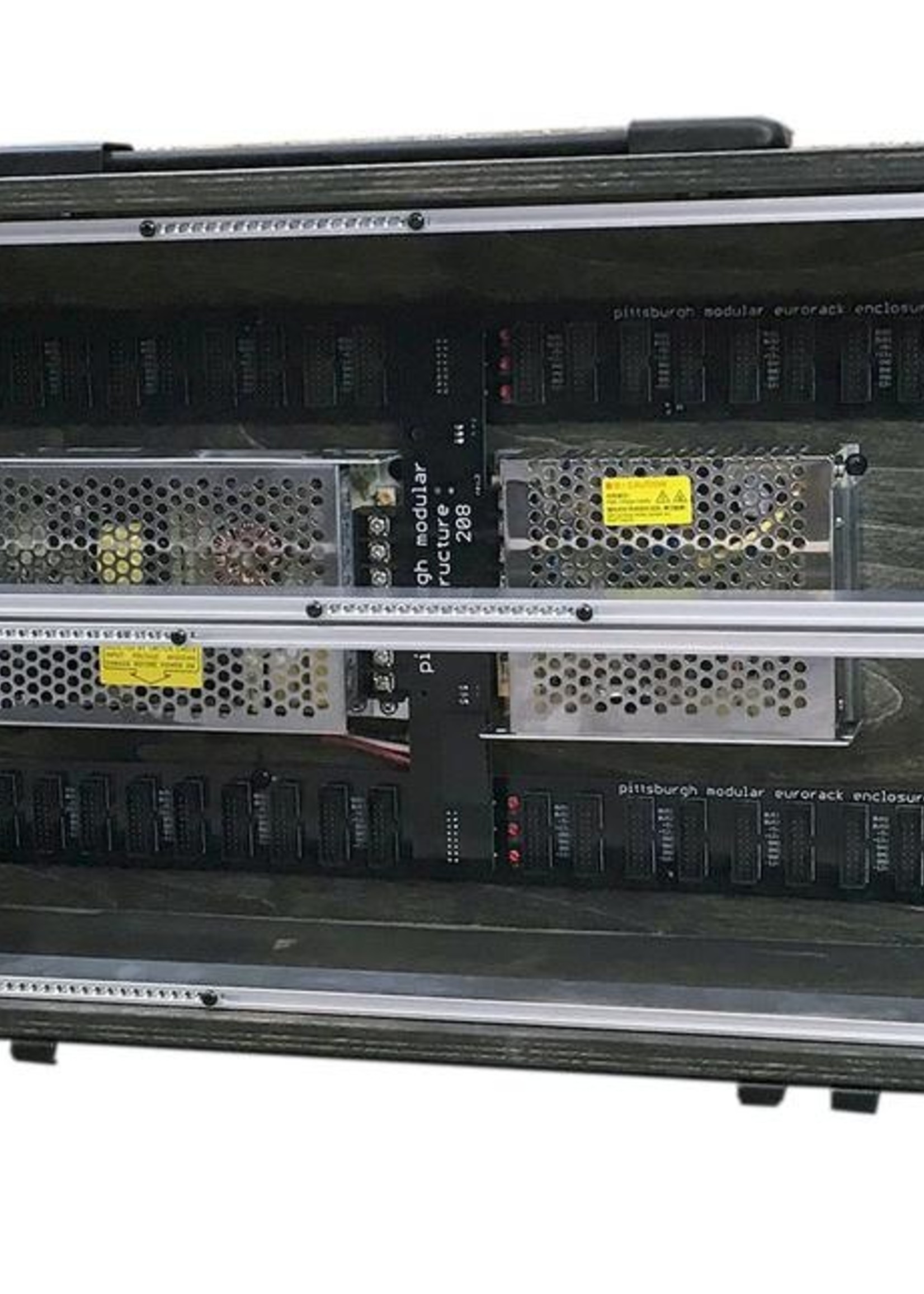

A serious double row, 208hp powered eurorack travel case with lid. Includes a heavy duty, internal power supply designed to exceed the needs of the most demanding analog and digital eurorack systems.

Power
• 4 amps of Clean +12
• 3 amps of Clean -12
• 2 amps of Clean +5v
• 30 Keyed Eurorack Power Headers
• Fused Power Protection

Enclosure
• Hardwood and Steel Construction
• Two 104hp Rows for 208hp
• Removable Lid, Lid Fits Over Fully Patched System (No need to remove patch cables)
• 20 Smooth Sliding Square Nuts Per Rail (Holds up to 40 modules)
• Includes 80 Black (Size 4-40 1/4") Module Mounting Screws
• Beautifully Hand-Stained Hardwood. Matching Black Steel Hardware Set

Dimensions
• External Depth with lid:9 1/4”
• External Depth without Lid: 5 1/2”
• External Height: 12 1/4”, External Width: 22”
• Internal Depth Above Power Supply: 2 3/4”
• Internal Depth Above Bus Board: 3 3/4”
• Internal Depth Above Nothing: 4 1/4”
• Empty Weight: 18 lbs

Rows 2-row
Width 104HP
Total Usable HP 208HP
Power 4A @+12v, 3A @-12v, 2A @+5v; 30 connectors
Lid Yes, not patchable while closed
Internal Depth 70mm-108mm
External Dimensions 22" x 12.25" x 5.5" (22" x 12.25" x 9.25" with lid)
Screws 4-40, 80x (black) Included
Screw Fixation Sliding nuts
Scalable No
