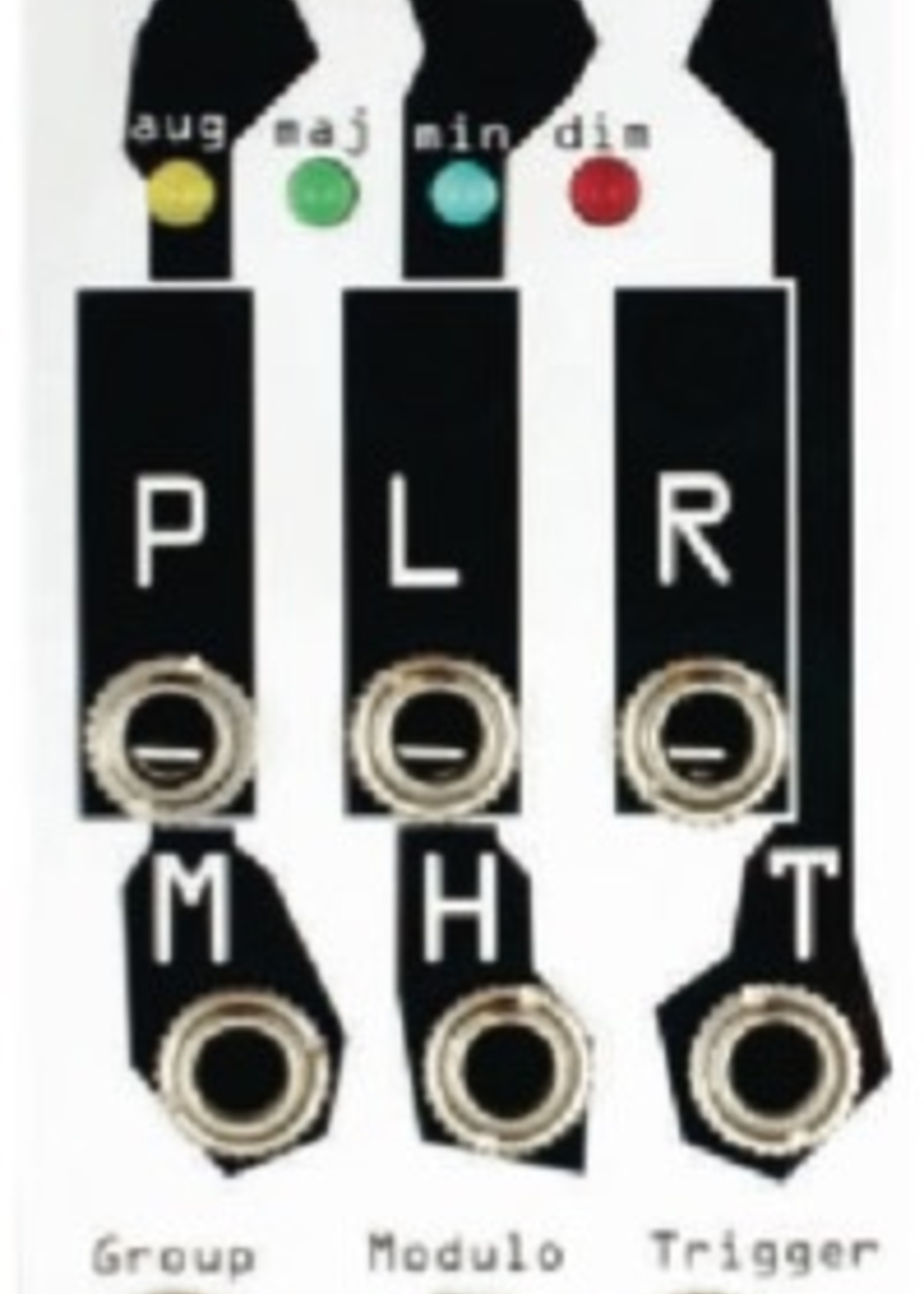

Tonnetz Sequent is a triad generator that maps gate inputs to the triadic transforms of the Eularian Tonnetz allowing one to move through triadic space with rhythm. It outputs three - 1v/8va control voltages to control the pitch of oscillators. It has three gate inputs for the standard Tonnetz transforms: Parallel, Leading, and Relative. ?ere are also inputs to reset the triad to a reference triad, perform semitone transpose and change which triad types form the transform domain (major/minor, augmented/major, diminished/minor).
In the Box
• The module itself
• Eurorack Power Cable
+12v | 50mA |
---|---|
-12v | 5mA |
+5v | 0mA |
Width | 8HP |
Depth | 26mm |
