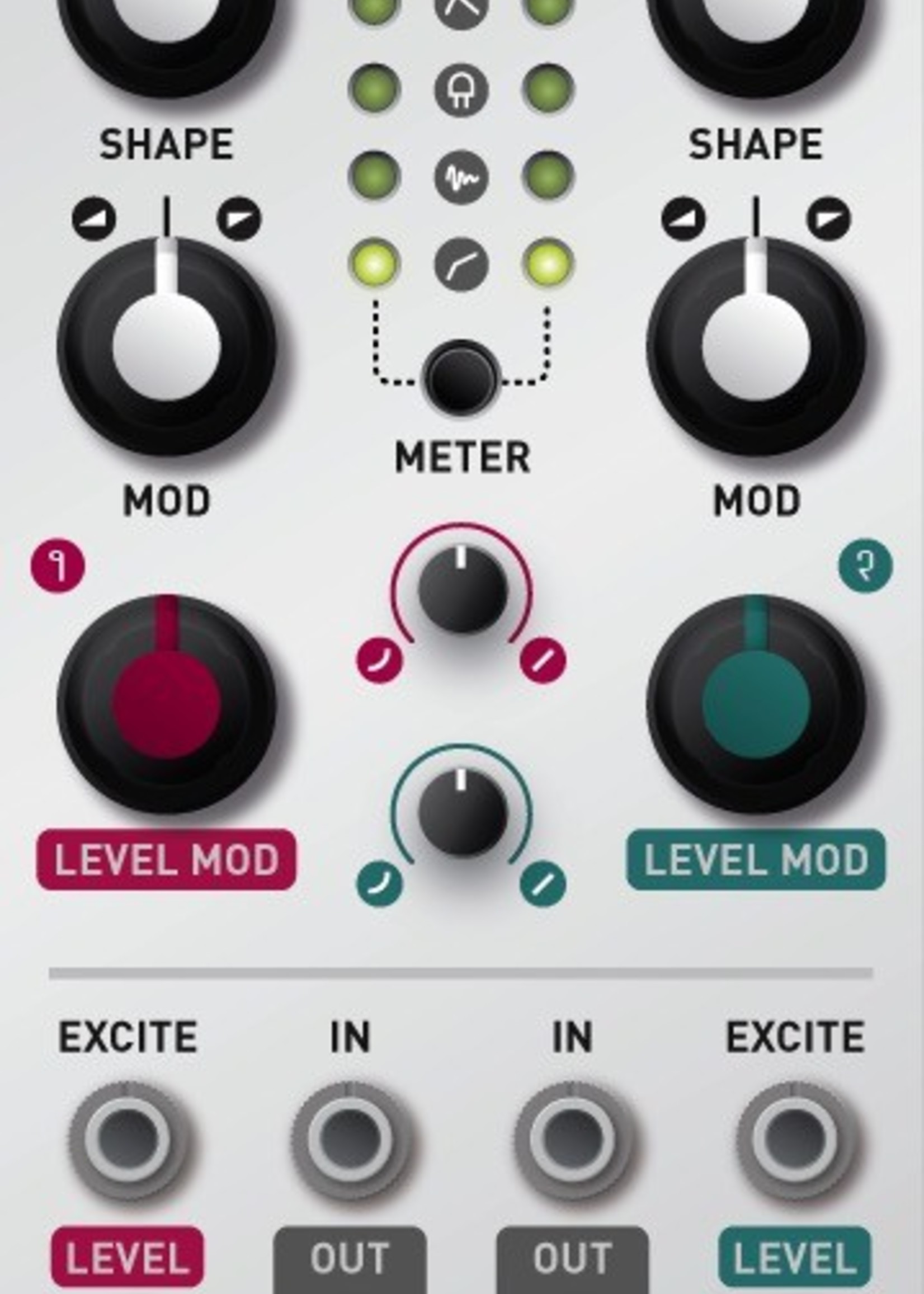

Streams provides two channels of extremely flexible signal dynamics manipulation.

Each channel consists of an analog voltage-controlled filter and amplifier (VCFA). The response curve of the amplifier section is continuously variable from exponential to linear. The amplifier gain is directly controllable from a CV input, through an attenuator. But what makes Streams truly unique is the multi-purpose EXCITE input. The signal routed to this input is analyzed by a micro-controller and translated into internal control voltages for the VCFA, turning Streams into a very versatile signal contouring tool.

Envelope generator:
The EXCITE input can work as a trigger input, triggering an internal AD or AR envelope routed to the gain and the filter cutoff (in variable amount). With only 6-HP of space, you can shape an oscillator or noise source into a full-bodied sound.

Vactrol curve generator:
The EXCITE input is processed by a digital model of a resistive opto-isolator (Vactrol), controlling the gain and the filter cutoff (in variable amount). The digital emulation allows the modification of properties of opto-isolators - such as response time - which are otherwise difficult to control. The virtual vactrol response can be either optimized for processing CVs, or triggers (for “plucked” sounds).

Amplitude and frequency content follower:
The envelope and cutoff of the EXCITE signal is measured, and applied to the signal on the VCFA input.

Compressor/limiter:
Streams' VCF is disabled, and the VCA is used to control the dynamics of the input signal. An intuitive control scheme allows the compressor to be used either for peak reduction/limiting operation; or for boosting signal levels with soft-limiting. The EXCITE input can be used as a sidechain.

In the Box
• The module itself
• Eurorack Power Cable
,
