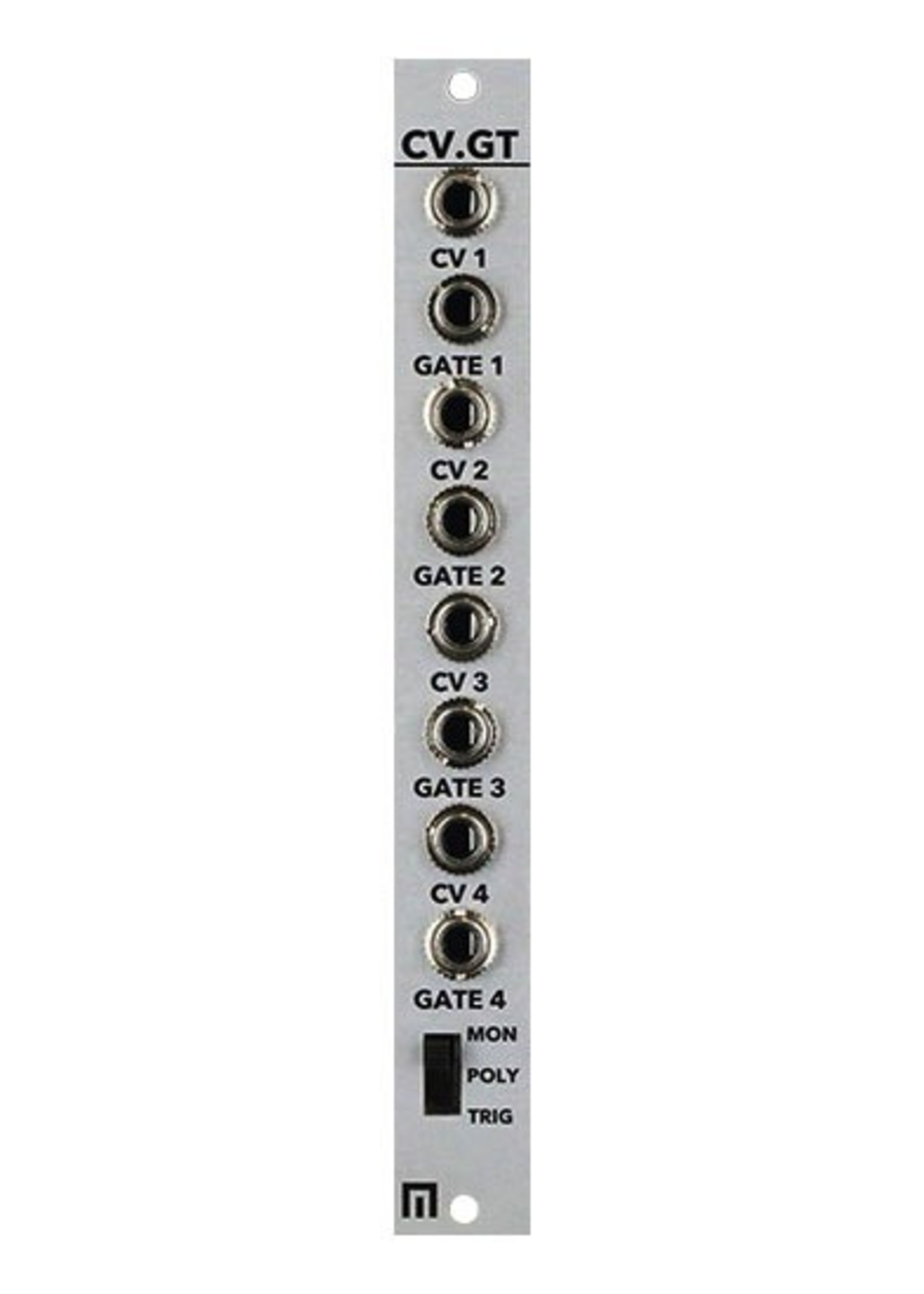

CV/Gate is an expander module for Malekko Sync (connects via 6-pin cable included). Malekko SYNC sends incoming MIDI information or trigger information to CV/GATE expander outputs in 3 selectable modes (Mono, Poly and Drum Trigger Modes).

Modes- Mono (MIDI channels 1-4 sent separately out cv/gate jacks 1-4), Poly (4 notes sent over channel 1 to the 4 cv/gate jacks), Drum Trigger (notes C1-G1 send gates out of the 8 jacks).

Features
• 4 sets of CV/Gate connections
• 3 way mode switch

In the Box
• The module itself
• Eurorack power cable
