USB Host to MIDI converter for 'Class Compliant' USB MIDI Devices

A USB device is plugged into the USB MIDI Host instead of into a computer. It provides MIDI In & Out sockets for USB MIDI keyboards and controllers which have only a USB B type socket. For example, used with a USB-Solo, it allows the USB-Solo to be used in a standard MIDI setup, just like a Pro-Solo. It has a USB Host port (USB A type socket), a MIDI In and a MIDI Out (both 5 pin DIN). MIDI data received at the MIDI In socket will be sent to the USB device. MIDI data received from the USB device will be sent to the MIDI Out socket.

Physical Specifications
• 110 x 55 x 32 mm
• 100g (excluding power supply)

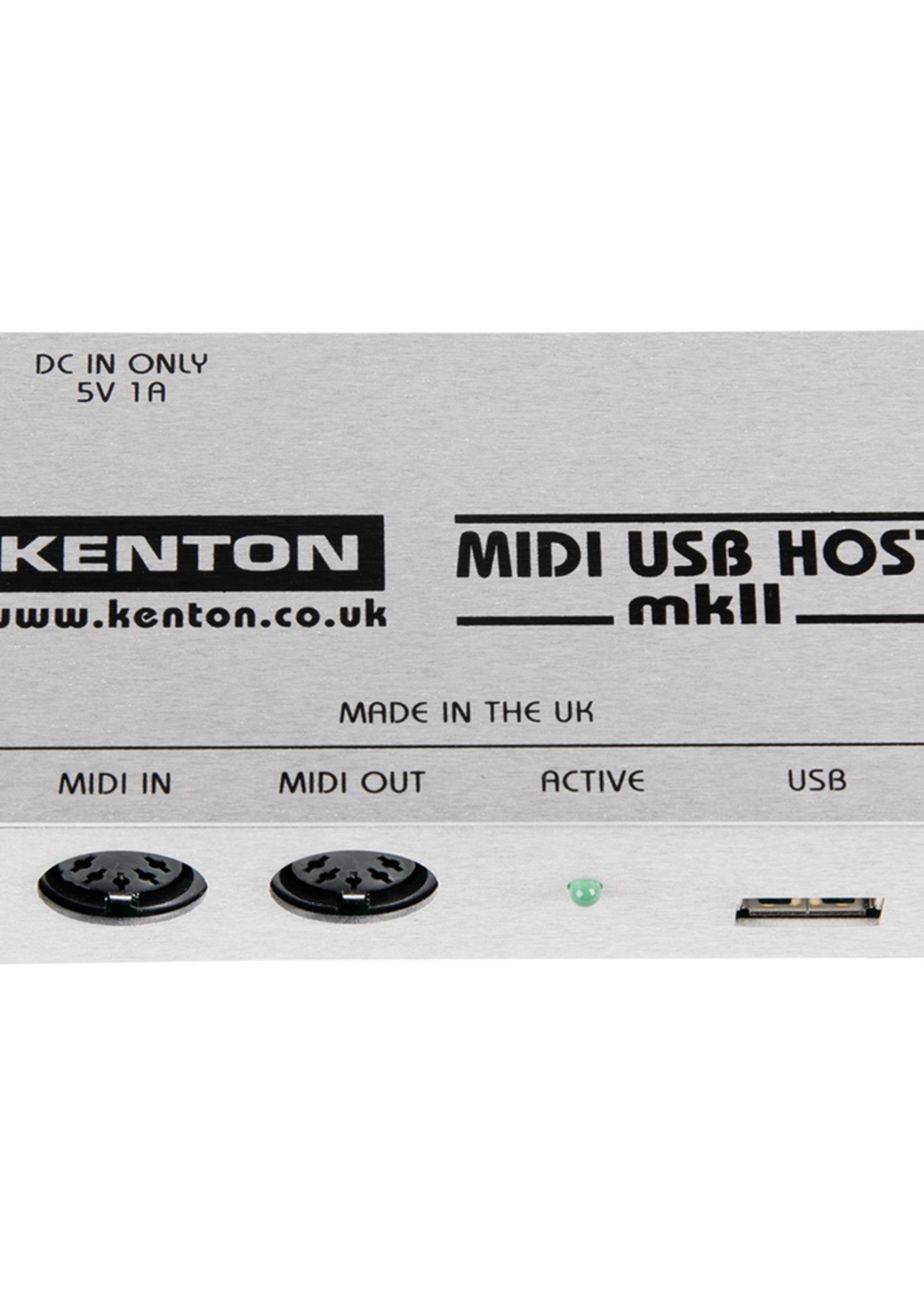

I/O
• MIDI: 1x IN, 1x OUT - both 5 pin DIN
• Power: 90mA, 2.1mm plug (centre positive) -,510mA available for attached USB device
• Power Supply: 5V DC (regulated) - use only the supplied adaptor
