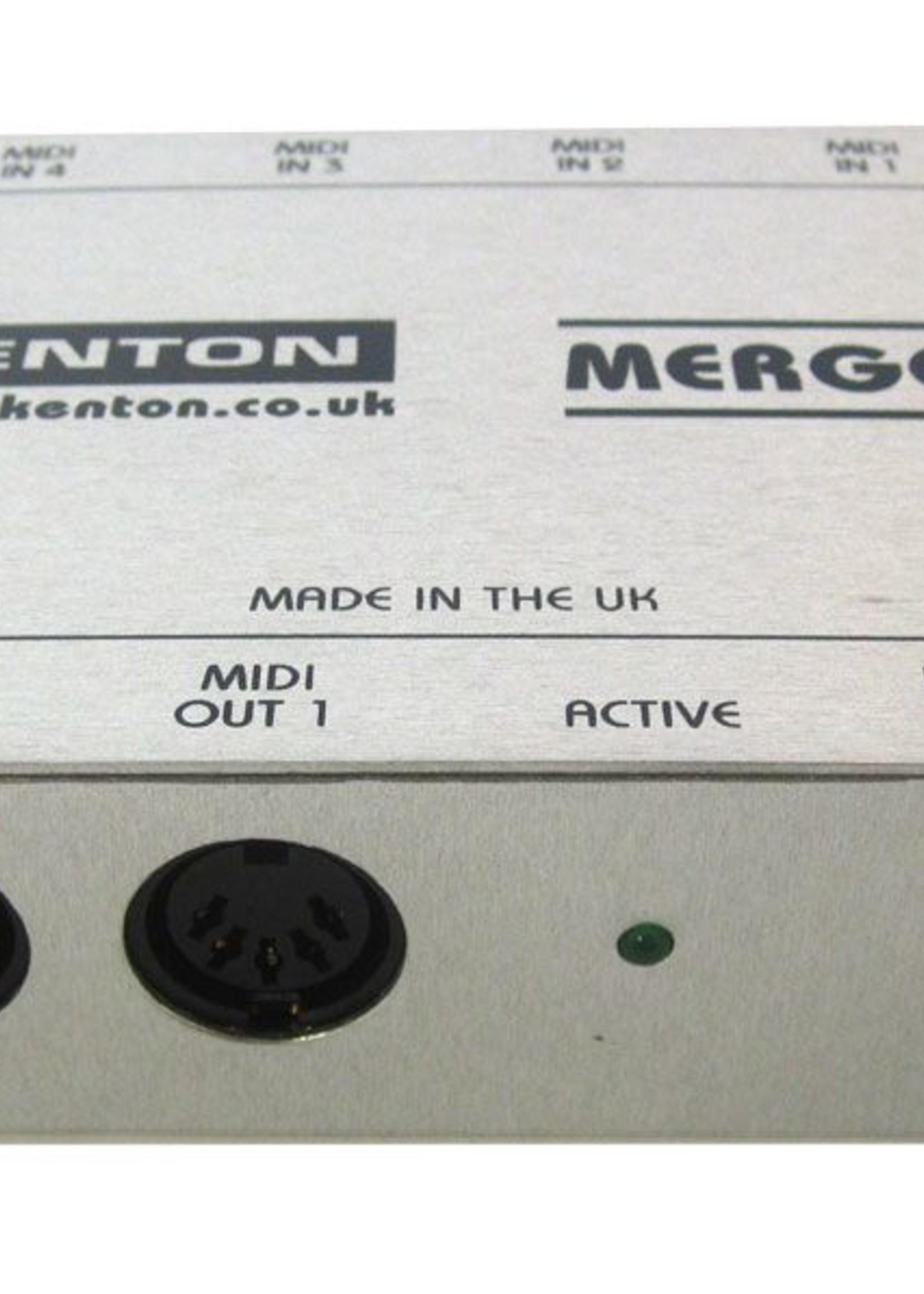

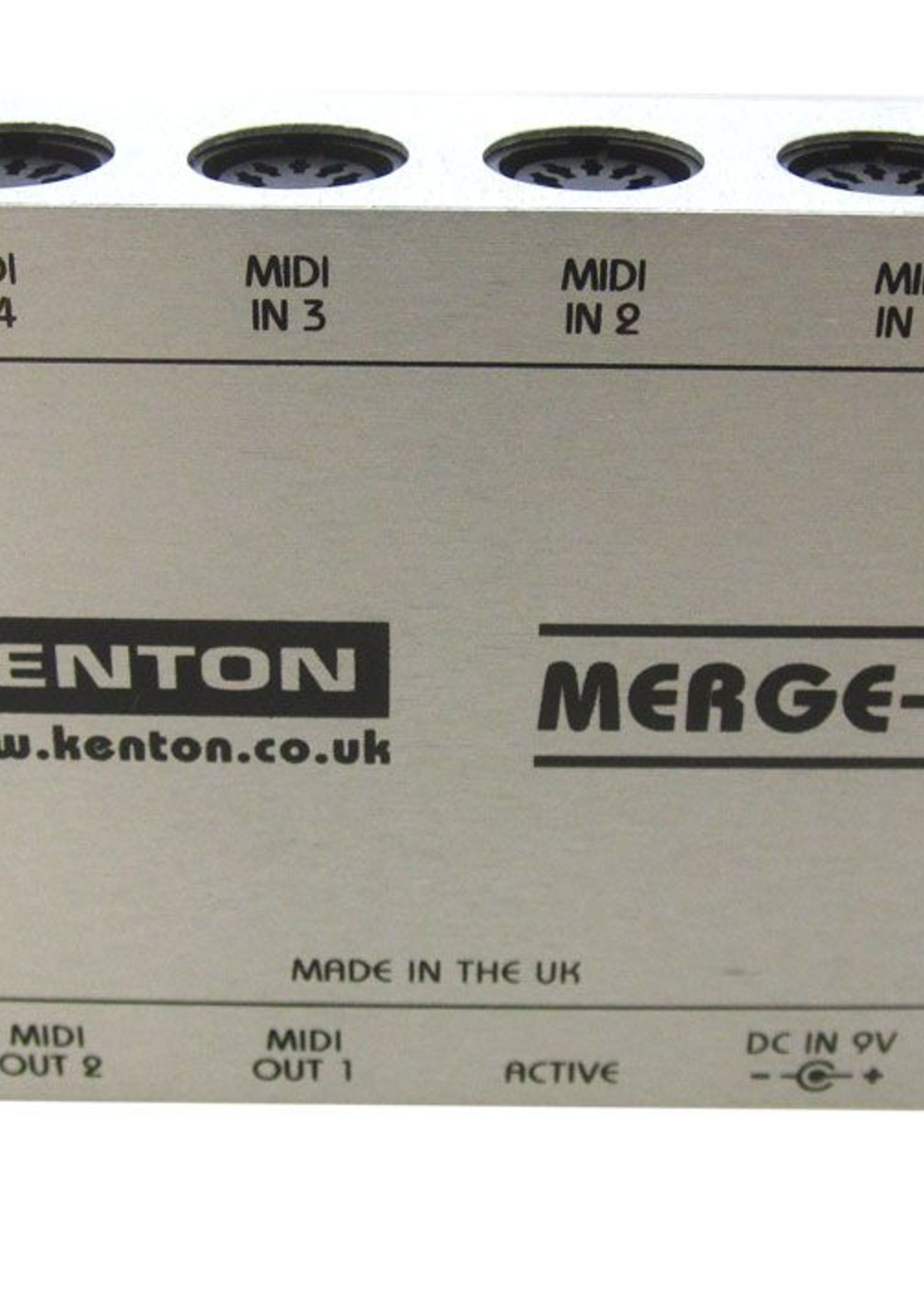

High quality Kenton MIDI Merge box

Merges the data from up to four separate MIDI sources (e.g. Master keyboards or controllers) into a single MIDI data stream which appears at both of the MIDI out sockets. Merges all MIDI data including MIDI Clock, MIDI time code and SysEx.

Features
• 4 opto-isolated MIDI Ins
• 2 MIDI Outs.
• DC power input jack 2.1mm (centre +ve)
• Power indicator light
• Housed in a metal box so it can withstand the knocks

Physical Specifications
• 110mm x 80mm x 35mm
• 150g (excluding power supply)

I/O
• MIDI:4 x In, 2 x Out (both deliver the same data)
• Power: 9V DC (regulated or unregulated) - never apply more than 12V,(never use an unregulated supply greater than 9V as,unregulated supplies typically give a higher output than shown)
• Power Supply: 9V switch mode power supply supplied with unit..
