SPECIAL ORDER ONLY! The ETA is 2-3 months as of Nov 18th
Features

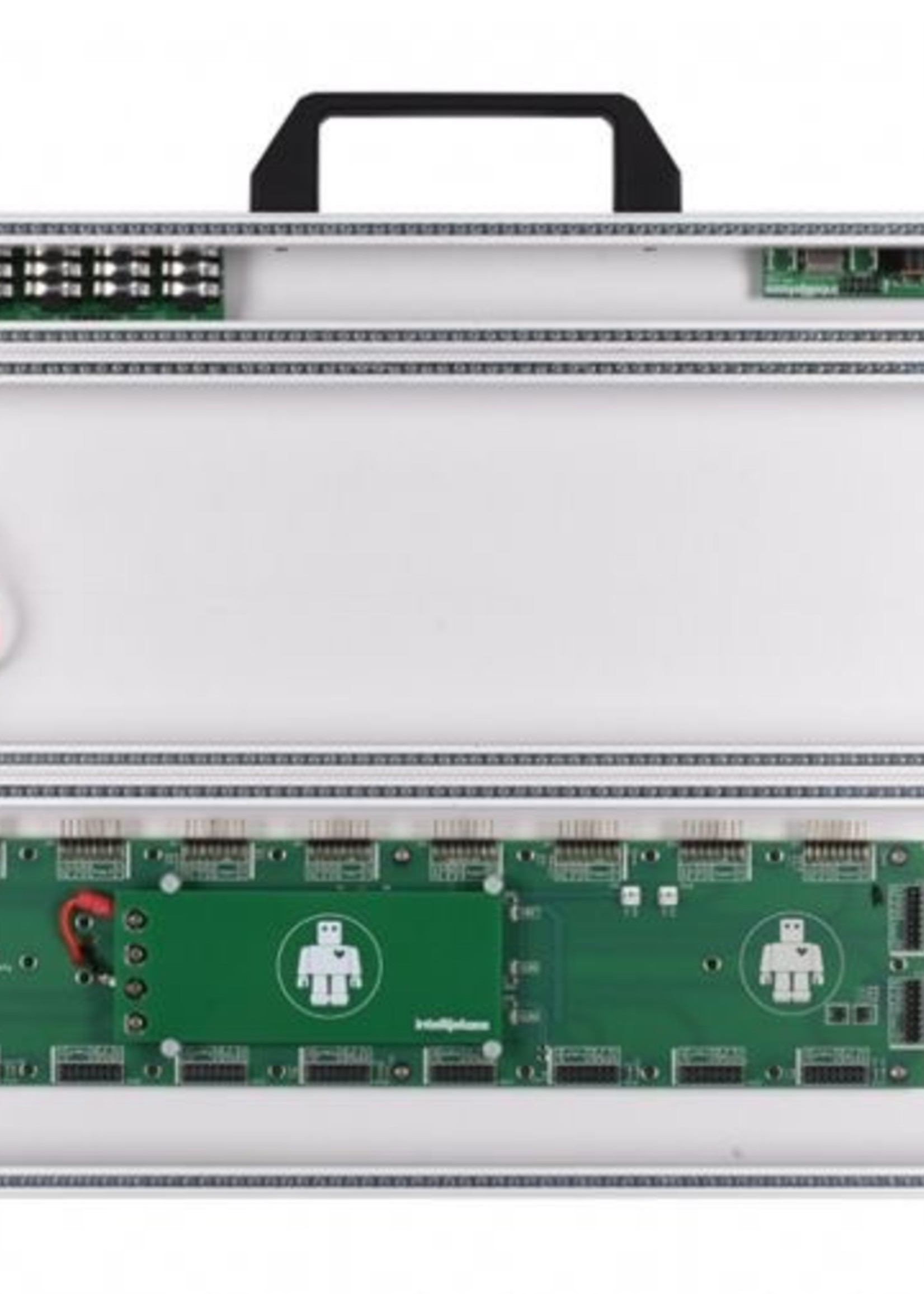

• Two 84 hp rows (6U) of Eurorack module space.
• One 84 hp row for our 1U modules.
• Threaded M3 strips for mounting modules.
Construction
• Solid plastic carrying handle.
• Anodized aluminum lid with latches, deep enough to close the case with cables patched in.
• Retractable feet that can support the case at two different angles. Or lay the case flat on a table.
• Plastic feet for resting the case on the table.
• Rubber feet on bottom side of lid so the case can stand vertically with the lid attached.
• Spring-loaded latching accessory slots on top and bottom of the case. The slots can be used to attach two cases together and for the carrying strap.
Rear Panel

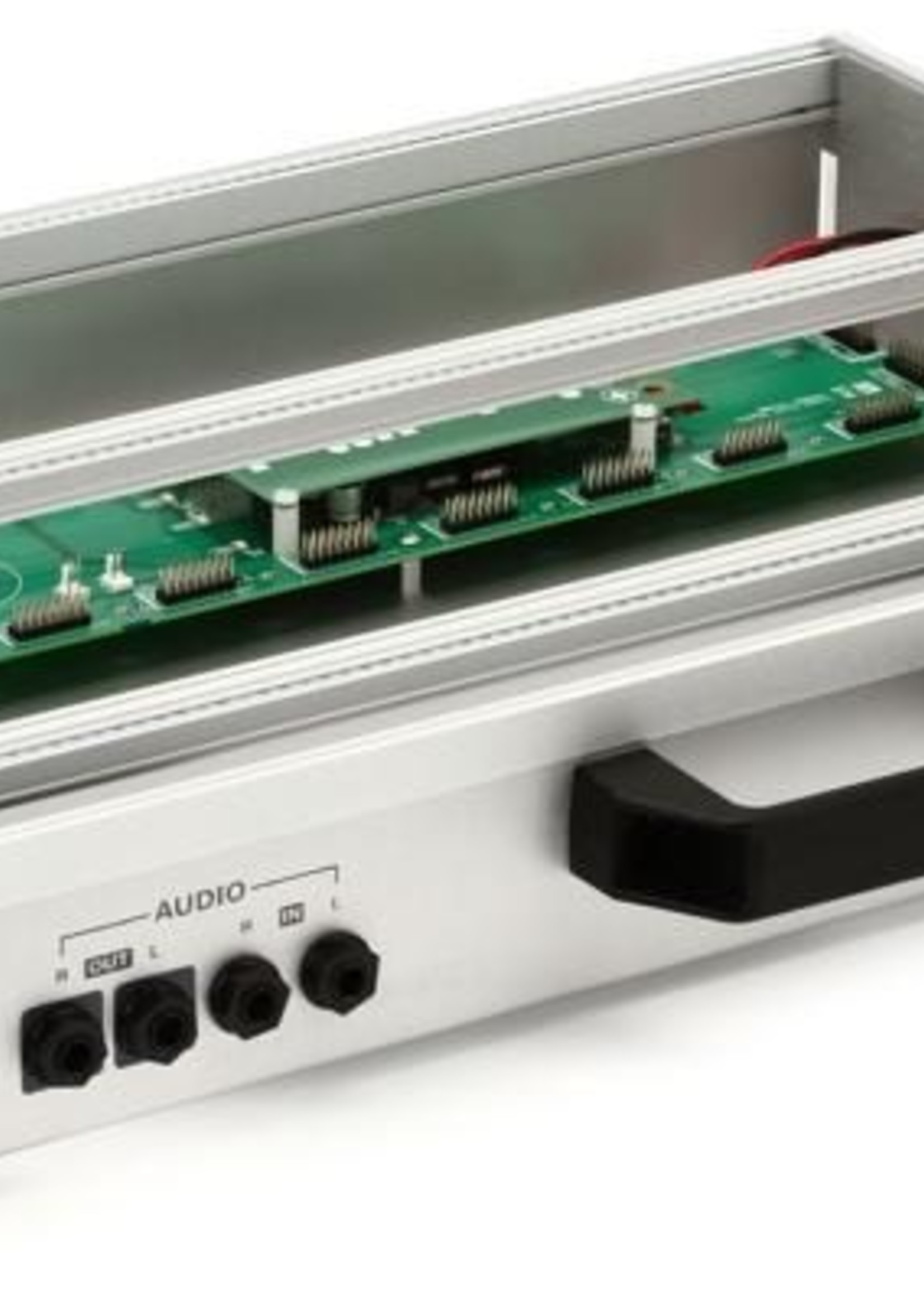

• Four 1/4" audio jacks that can be connected to the Audio I/O 1U. Two ins and two outs.
• MIDI In, Out, and Thru jacks. The In jack can be connected to the µMIDI 1U and will pass to the Thru. The Out is for future expansion.
• USB port that connects to the µMIDI 1U and other future modules.
• Rocker switch and barrel plug for power entry.
| Rows | 3-row (1 of which is 1U) |
|---|---|
| Width | 84HP |
| Total Usable HP | 252HP (84hp of which is 1U) |
| Power | 3A @+12v, 3A @-12v, 1.5A @+5v; 20 connectors |
| Lid | Yes, patchable while closed |
| Internal Depth | 53mm |
| External Dimensions | 312mm x 165mm x 445mm (with lid), 312mm x 83mm x 445mm (without lid) |
| Screws | M3, Not included |
| Screw Fixation | Threaded strip |
| Scalable | Yes |
