Intellijel 7U Performance Case, 84hp, Stealth Black, SPECIAL ORDER

Article number: CV3293
$599.00
Total

SPECIAL ORDER ONLY! The ETA is 2-3 months as of Nov 18th

The rating of this product is 0 out of 5

(0)
Pre-Orders Accepted

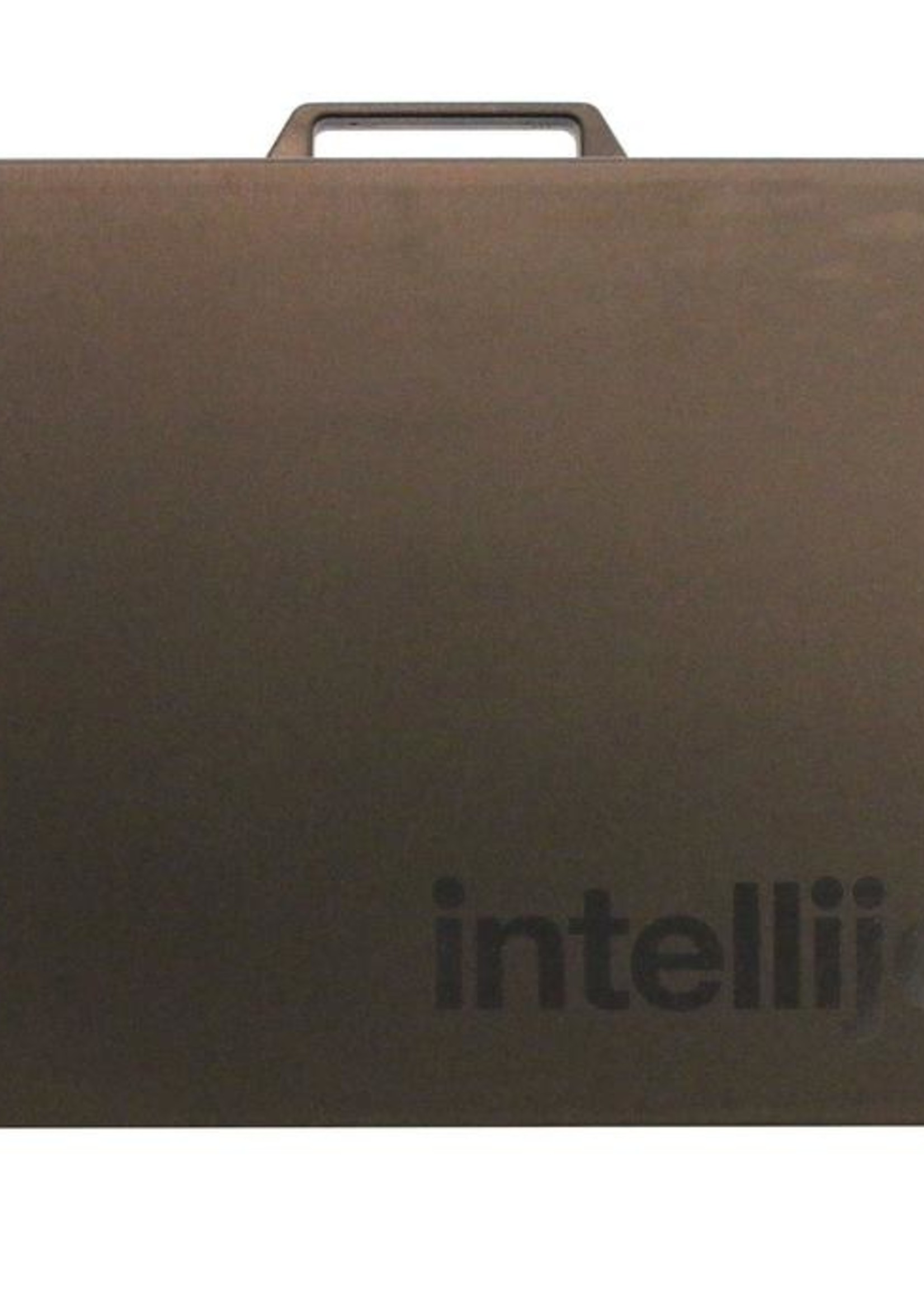

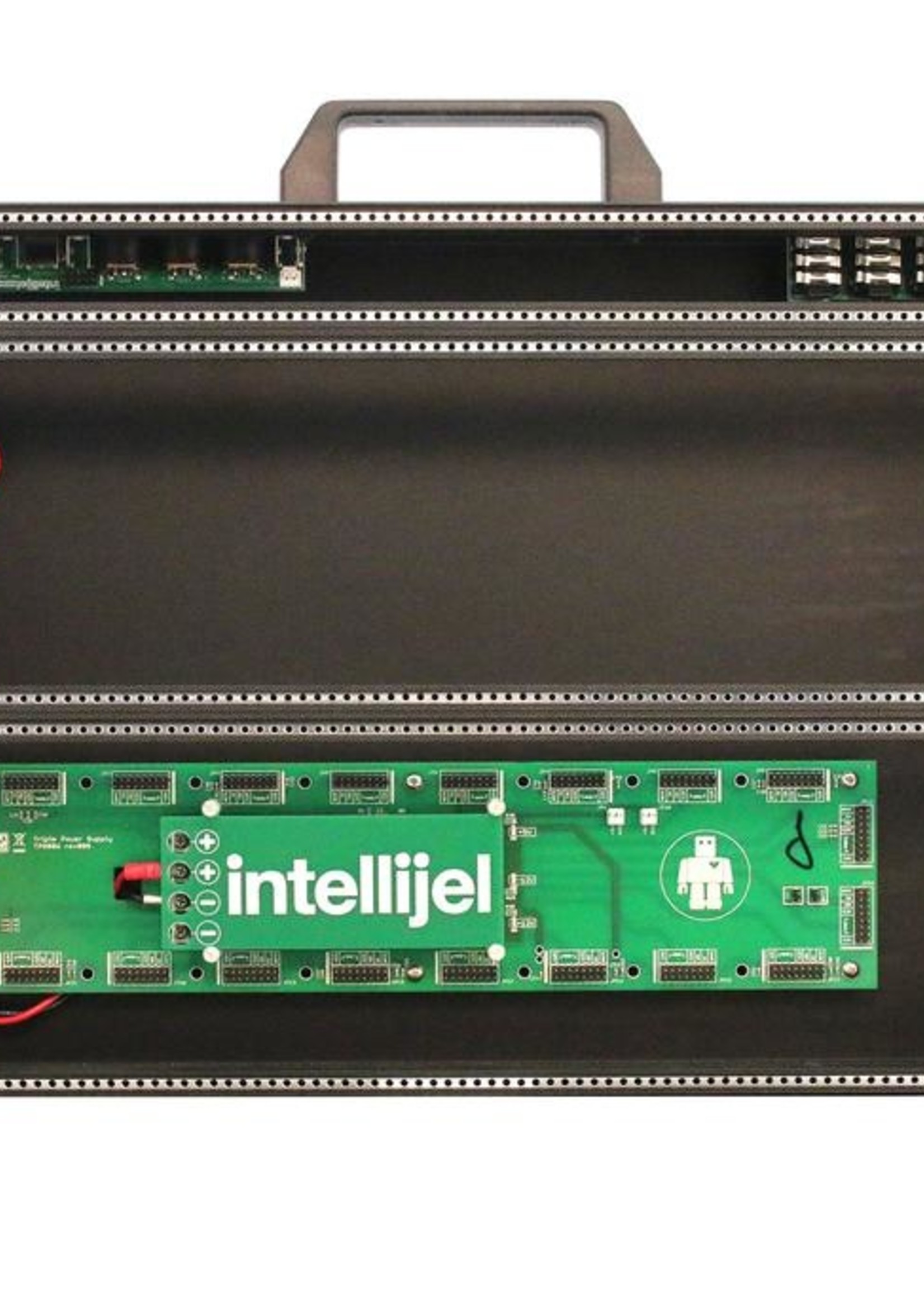

Black/Grey Stealth Powered 84hp 7U Performance Case

Studio, cafe, stage, floor, coffee table—the 7U Performance case doesn't care where you play with it. Two 3U rows house and power all the modules you love (or one day hope to love), while the additional 1U row accommodates an extensive selection of specialized utility modules. Power, audio and MIDI/USB jacks on the back handle all the necessary inputs and outputs, ensuring all that rack space remains free for the "fun" modules. The lid has enough clearance to keep your system patched in transit, and two cases can be stacked with a set of joiners.

Features
• Two 84 hp rows (6U) of Eurorack module space.
• One 84 hp row for our 1U modules.
• Threaded M3 strips for mounting modules.

Construction
• Solid plastic carrying handle.
• Anodized aluminum lid with latches, deep enough to close the case with cables patched in.
• Retractable feet that can support the case at two different angles. Or lay the case flat on a table.
• Plastic feet for resting the case on the table.
• Rubber feet on bottom side of lid so the case can stand vertically with the lid attached.
• Spring-loaded latching accessory slots on top and bottom of the case. The slots can be used to attach two cases together and for the carrying strap.

Rear Panel
• Four 1/4" audio jacks that can be connected to the Audio I/O 1U. Two ins and two outs.
• MIDI In, Out, and Thru jacks. The In jack can be connected to the µMIDI 1U and will pass to the Thru. The Out is for future expansion.
• USB port that connects to the µMIDI 1U and other future modules.
• Rocker switch and barrel plug for power entry.

Rows 3-row (1 of which is 1U)
Width 84HP
Total Usable HP 252HP (84hp of which is 1U)
Power 3A @+12v, 3A @-12v, 1.5A @+5v; 20 connectors
Lid Yes, patchable while closed
Internal Depth 53mm
External Dimensions 312mm x 165mm x 445mm (with lid), 312mm x 83mm x 445mm (without lid)
Screws M3, Not included
Screw Fixation Threaded strip
Scalable Yes
