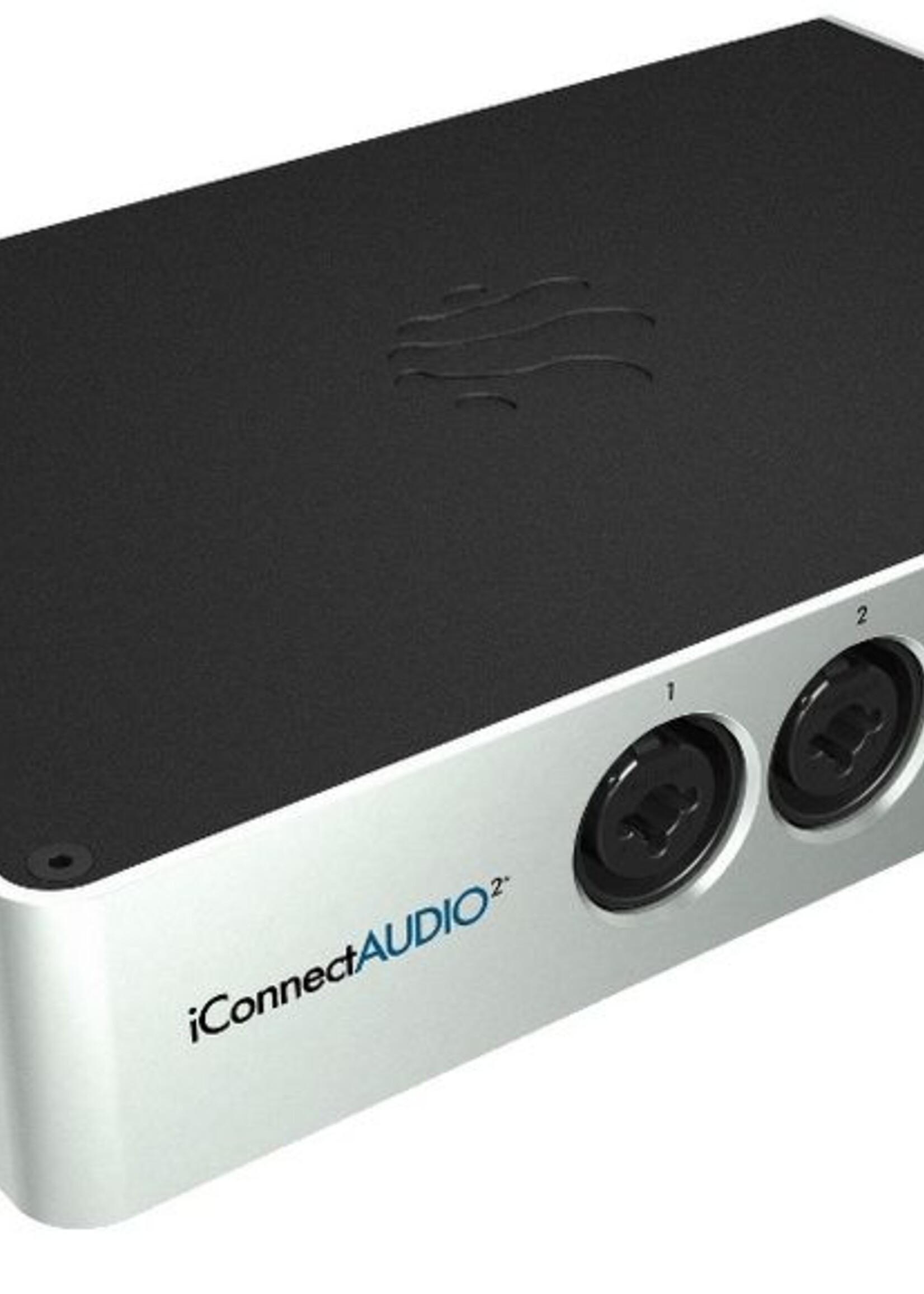

Features

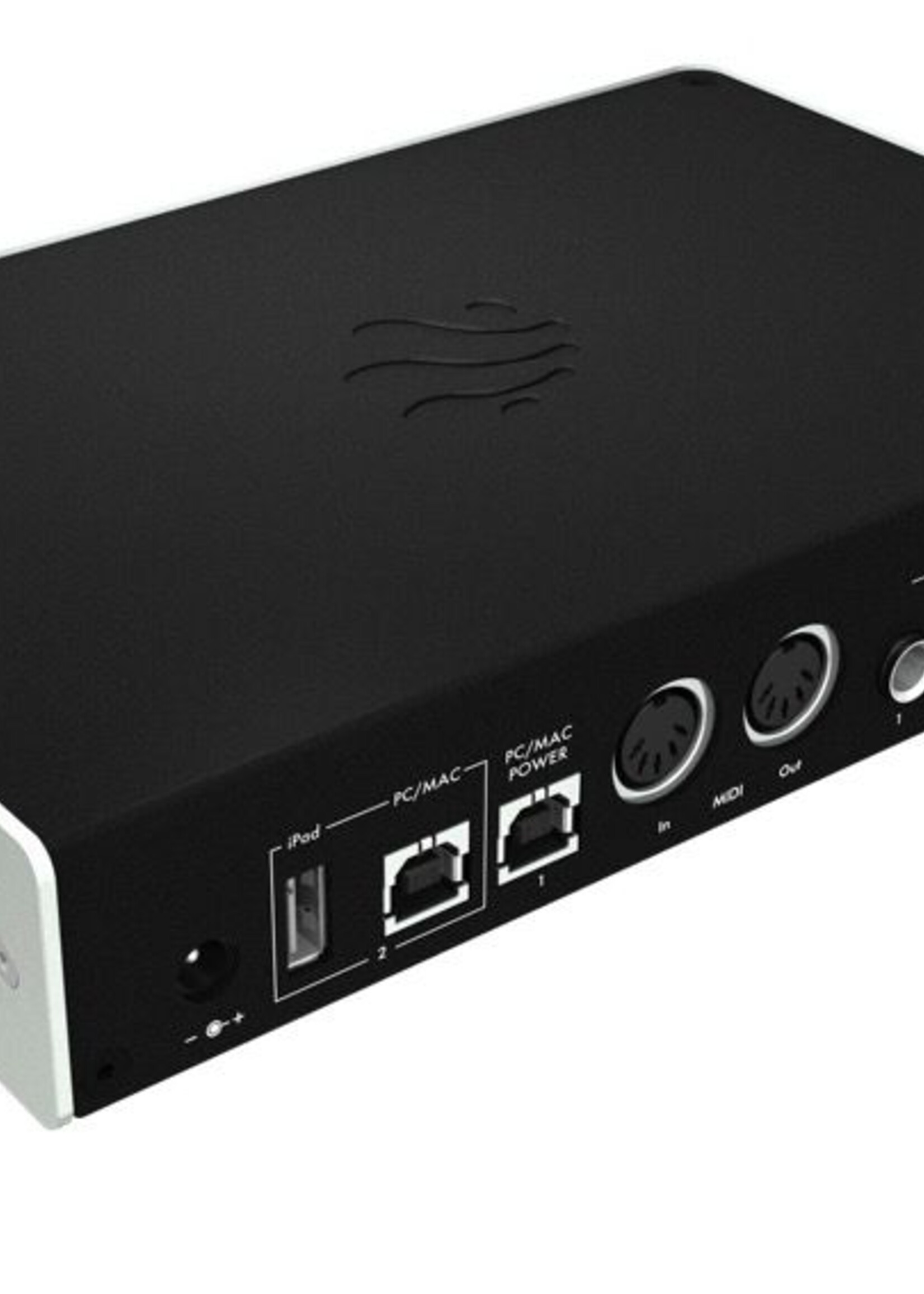

• Multi-host Device ports - use with one computer device plus an iOS device at the same time, or up to two computer devices (Mac/PC) at the same time
• Audio passThru™ routes audio digitally between computer devices

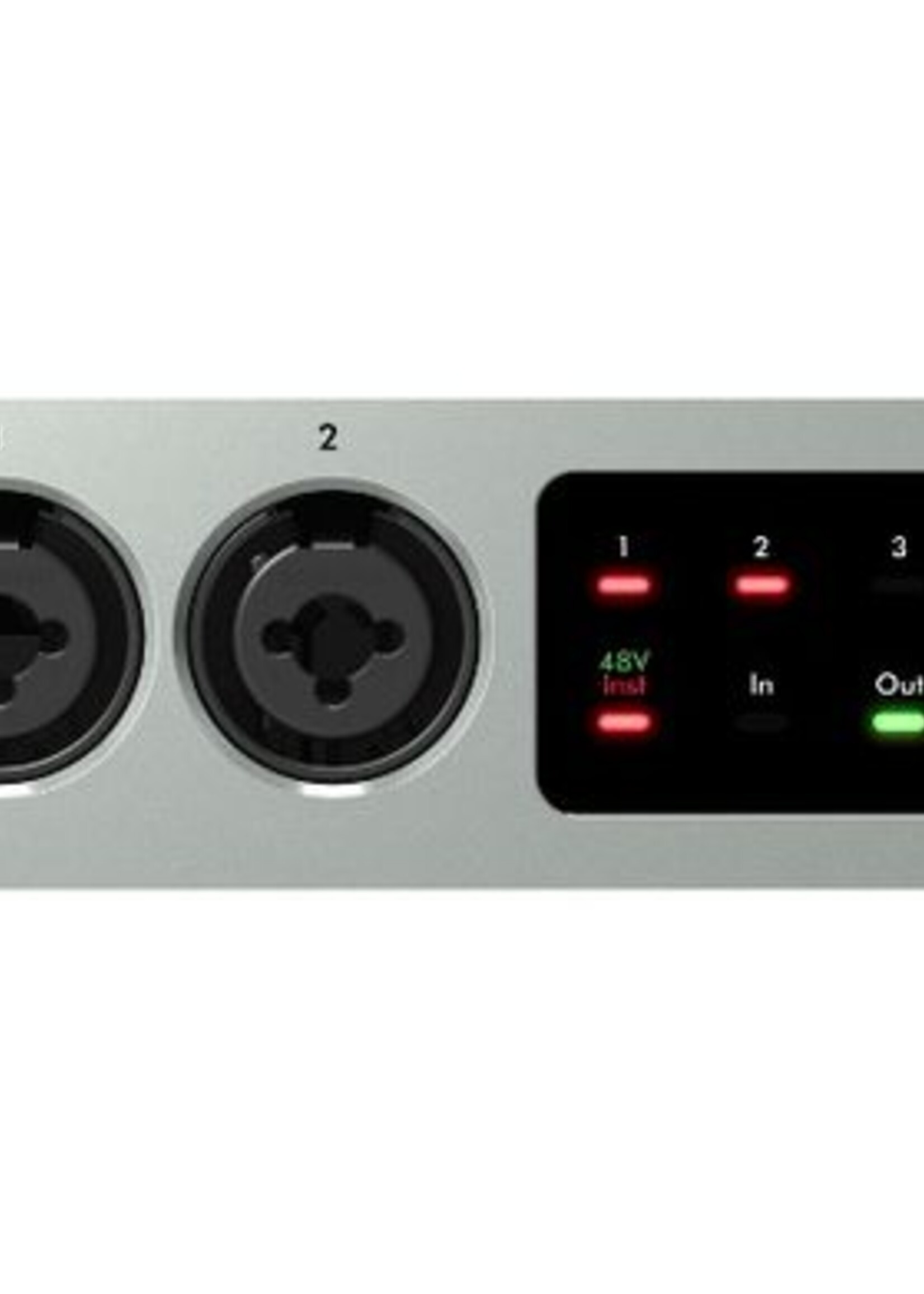

• 2 XLR 1/4” TRS combo analog inputs, each with individual +48V phantom power toggle and impedance switching
• 4 1/4” TRS balanced analog outputs
• 1/4” Headphone output with independent mix
• 1 X 1 MIDI DIN in/out
• iConfig software (Mac/PC/iOS) makes it simple to set up filtering/routing/mixing/merging scenes - which are also stored in flash memory on the device
• High-resolution audio - up to 24-bit/96kHz AD/DA conversion
• USB audio and MIDI Class-Compliant
• Capacitive touch display and control surface
• Bus powered
• Charges an iOS device when used with optional power supply (not included)

Physical Specifications
• Width: 214mm / 8.43”
• Height: 37mm / 1.46”
• Depth: 140mm / 5.51”

In the Box
• The Interface itself
• 1 x USB cable (for Mac / PC connectivity)
