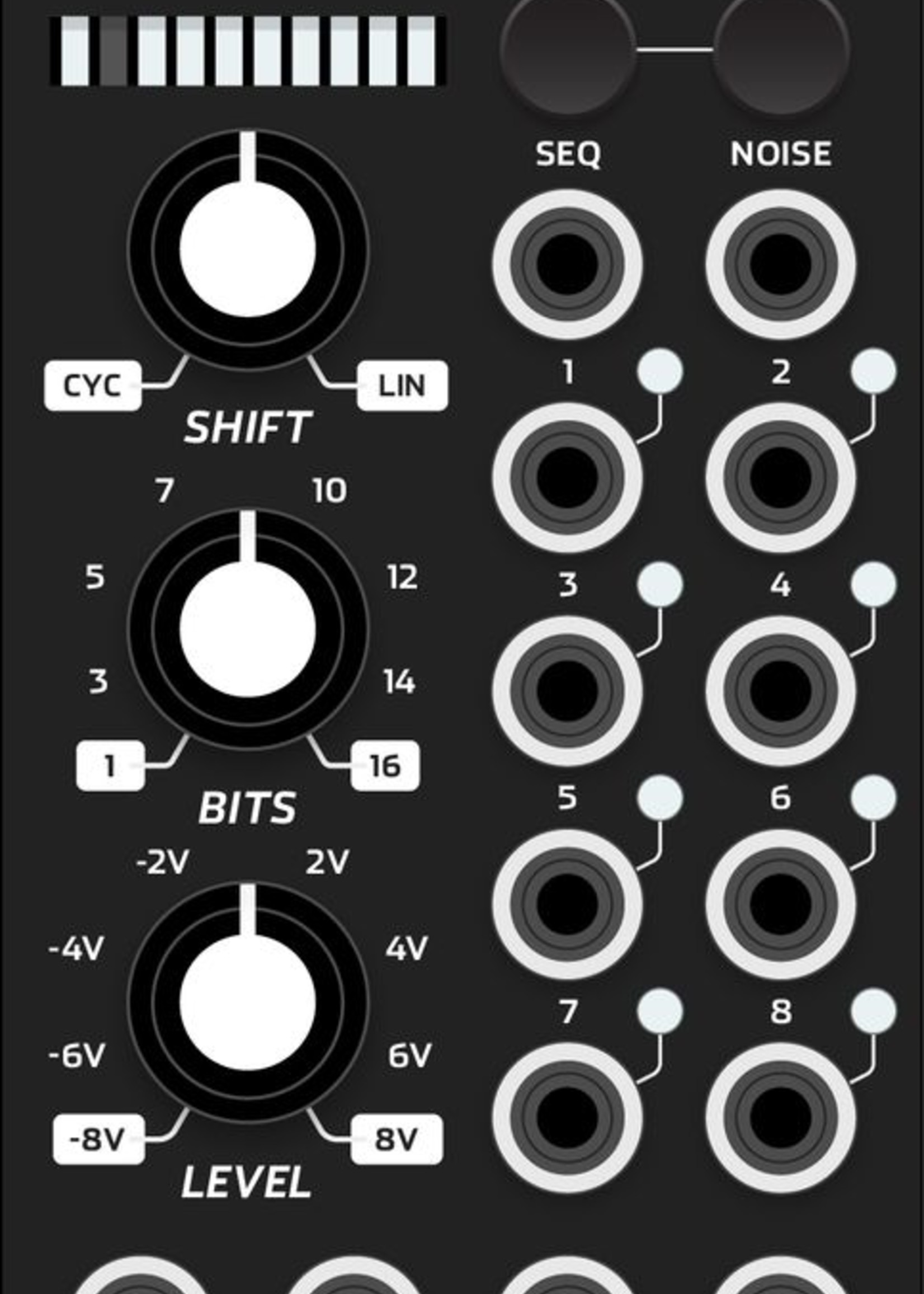

Random sequencer based on the Turing Machine (12hp/Black version)

Permutation is a set of random sequencers that use a digital shift register to generate unpredictable CV and gate patterns that can be locked into repeating loops. The concept is based on the Turing Machine, an open source module designed by Tom Whitwell.

Permutation retains the core functionality of the Turing Machine while adding new features such as dedicated outputs for each bit of the shift register, CV inputs for all parameters, and an internal bipolar VCA. Locked sequences are also saved across power cycles.

Each version of Permutation has a slightly different set of features.

12hp Features
• Sequence CV output
• White noise output
• 8 Gate outputs
• Bipolar VCA
• Clear/Write switches

Physical Specifications
• Format: Eurorack
• Width: 12hp
• Depth: 40mm

Electrical Specifications
• Power: +12v @ 48mA, -12V @ 14mA , +5V @ 0mA

In the Box
• The module itself
• Eurorack Power Cable
