This item is used, has been fully tested and is guaranteed to be working.

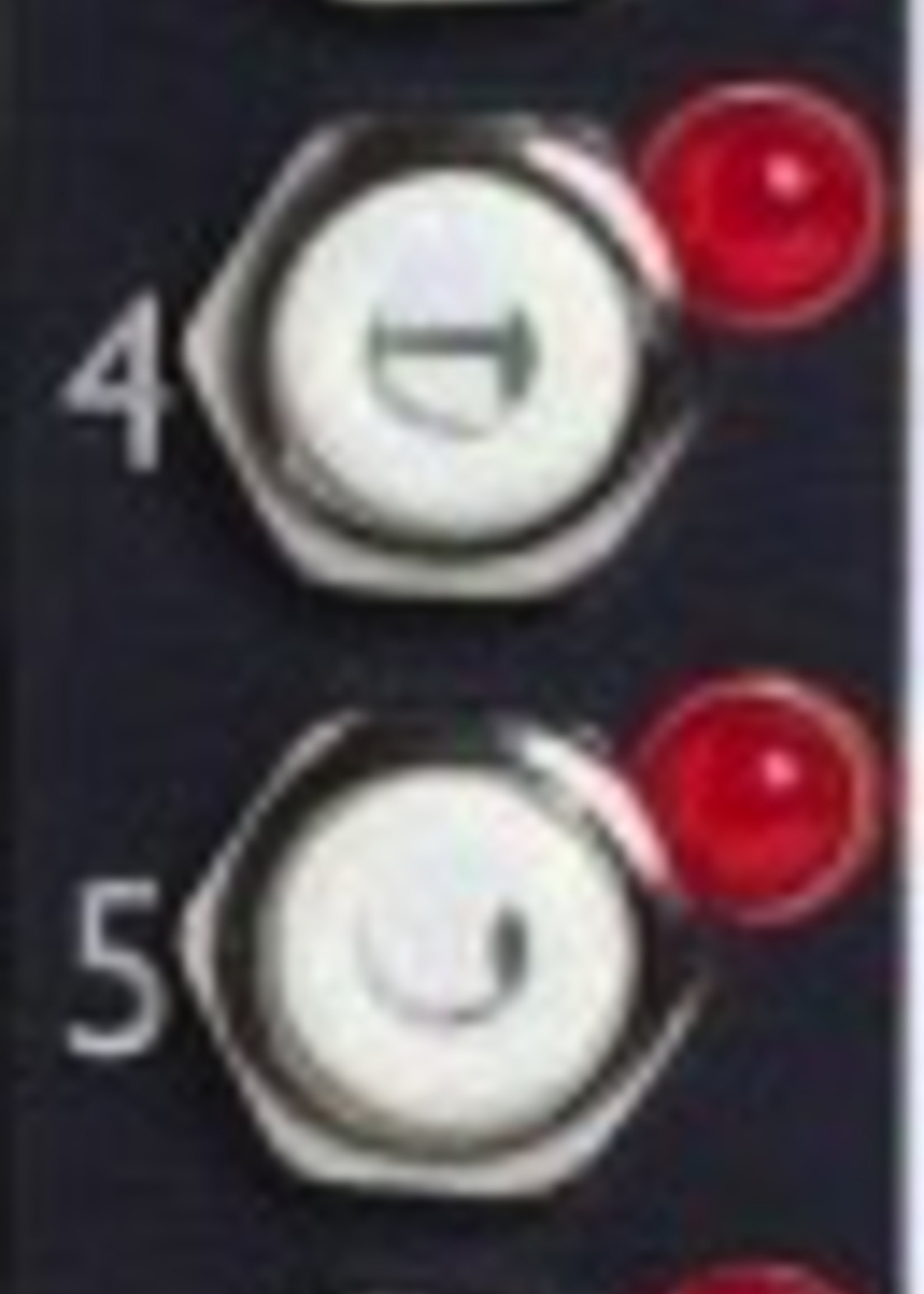

Gate Expander for the ES-4, ES-40, ES-5

The ESX-8GT is an expansion module for the ES-4, ES-40 or ES-5, adding 8 on/off outputs for use as gates, triggers, clocks etc. from one expansion header.

The ES-4/5 Controller software (part of Expert Sleepers Silent Way) also allows the ESX-8GT outputs to be used for DIN sync or MIDI output (note - not just MIDI clock output, but as an actual MIDI port, capable of sending any MIDI messages). Since these outputs are driven from an audio connection, they have sample-accurate timing, which no USB MIDI interface can claim. Note there is also the ESX-8MD module, which is dedicated to MIDI and DINsync duties.

Input
• Connection on the rear of the module ES-4, ES-40 or ES-5 modules

Output
• 8x 3.5mm jacks, DC-coupled

Physical Specifications
• Format: Eurorack
• Width: 4HP
• Depth: 24mm

Electrical Specifications
• Power: None, Passive

In the Box
• The module itself
• Eurorack Cable
