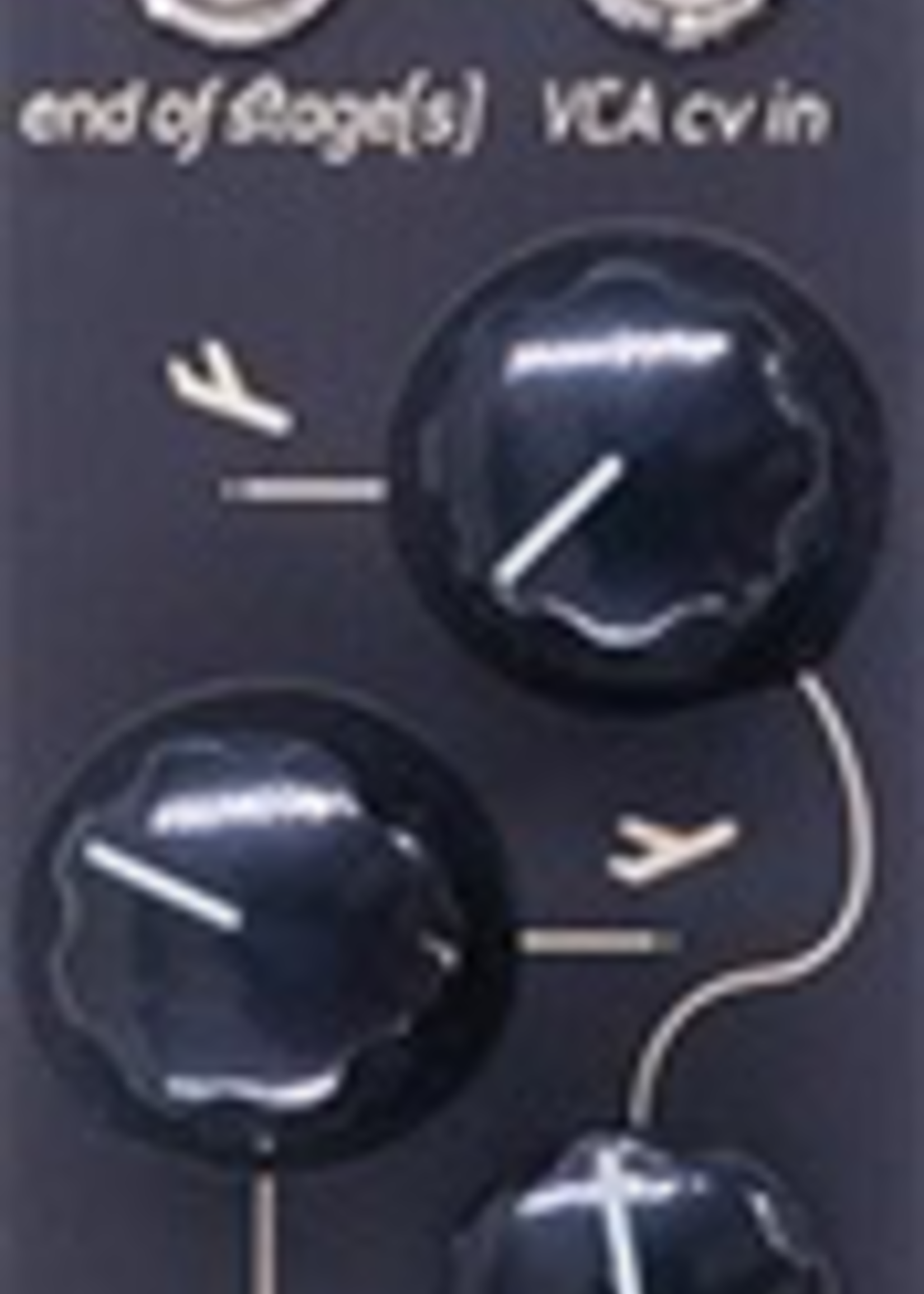

Endorphin.es Airstreamer
Article number: CV3412
$180.00
Total
Envelope Generator
Out of stock
Your cart is currently empty
Envelope Generator
Features
• fast and effective 6hp envelope generator with variable slope curves and three modes: looping, attack-sustain-release (ASR) and attack-decay (AD)
• 320 kHz samplerate, zero aliasing CV generation
• 1v/oct input, bipolar and unipolar outputs, selectable end of cycle outputs
• thru-zero VCA input that inverts the envelope when CV goes to negative voltages
In the Box
• The module itself
• Eurorack Power Cable
| +12v | 60mA |
|---|---|
| -12v | 15mA |
| +5v | 0mA |
| Width | 6HP |
| Depth | 30mm |
